LRD365

TeSys; TeSys Deca, Thermal overload relay, 690VAC, 48 to 65A, 1NO+1NC, class 10A, EverLink BTR screw

Old price: $344.85 INC GST
$217.26 INC GST
Available for Shipping : 24-Jul-2025
TeSys; TeSys Deca, Thermal overload relay, 690VAC, 48 to 65A, 1NO+1NC, class 10A, EverLink BTR screw
  • Tesys Deca thermal overload relays are designed to protect a.c. circuits and motors against overloads.
  • New modern look & feel of all machines
  • Easier to install and operate with multi-standard screws
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expert
  • Multiple international certifications
Manufacturer: Schneider Electric

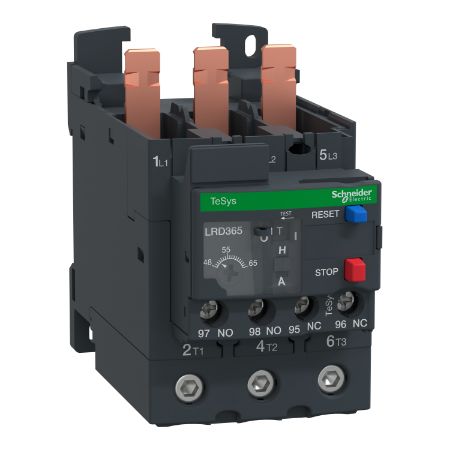

TeSys LRD thermal overload relay, 65A/690V, thermal setting range 48-65A, tripping class 10A, for protection of 3-phase motors 30kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LRD
Product compatibility LC1D50A, LC1D65A
Range TeSys Deca, TeSys
Thermal overload class class 10A conforming to IEC 60947-4-1
[Ui] rated insulation voltage power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to UL, power circuit: 600 V conforming to CSA
Product name TeSys Deca, TeSys LRD
Product or component type differential thermal overload relay
Relay application motor protection
Network type AC, DC
Thermal protection adjustment range 48-65 A
Complementary
Compatibility code LRD
Tightening torque power circuit: 5 N.m - on EverLink BTR screw connectors, control circuit: 1.7 N.m - on screw clamp terminals
Tripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Associated fuse rating 4 A BS for signalling circuit, 4 A gG for signalling circuit
Phase failure sensitivity tripping current 130 % of Ir on two phase, the last one at 0
[Ith] conventional free air thermal current 5 A for signalling circuit
Height 70 mm
Temperature compensation -20-60 °C
Depth 123 mm
Width 55 mm
Mounting support under contactor, rail, with specific accessories, plate, with specific accessories
Control type blue push-button: reset, red push-button: stop
Permissible current 0.06 A at 440 V DC-13 for signalling circuit, 0.95 A at 380 V AC-15 for signalling circuit
[Uimp] rated impulse withstand voltage 6 kV
Net weight 0.375 kg
[Ue] rated operational voltage 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Connections - terminals power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² solid without cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² flexible with cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end
Auxiliary contact composition 1 NO + 1 NC
Network frequency 0...400 Hz
Environment
Ambient air temperature for storage -60-70 °C
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -20-60 °C without derating conforming to IEC 60947-4-1
Climatic withstand conforming to IACS E10
Mechanical robustness vibrations: 4 gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Flame retardance V1 conforming to UL 94
Dielectric strength 1.89 kV at 50 Hz conforming to IEC 60947-1
Standards EN 50495, GB/T 14048.5, GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Product certifications UKCA, ATEX INERIS, LROS (Lloyds register of shipping), EU-RO MR, RMRS, DNV-GL, EAC, CCC, CSA, UL, IEC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.200 cm
Package 1 Width 11.000 cm
Package 1 Length 14.000 cm
Package 1 Weight 394.000 g
Unit Type of Package 2 2
Number of Units in Package 2 13
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.453 kg
Unit Type of Package 3 3
Number of Units in Package 3 208
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 97.732 kg
