SKU:

LRD3359A66

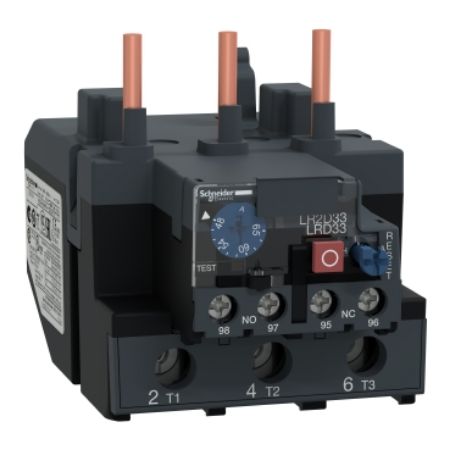

Thermal overload relay,TeSys Deca,48-65A,class 10A,1000V

Old price: $1,030.70 INC GST
$649.34 INC GST
Availability: Please contact our sales team on 1300 724 622.
Thermal overload relay,TeSys Deca,48-65A,class 10A,1000V
  • Easy to separate or direct mounting of OLR with CTR, save installation and assembly of panel components
  • Remote reset of relay without opening of panel doors, ensuring safety to personnel
  • with relay trip indicator to facilitate motor status monitoring
  • Simple mounting on DIN rail or screw fixing
  • Green Premium product
  • Multi sdandards certified makes it possible to wide application
  • Simple and quick maintenance with compact size
Manufacturer: Schneider Electric
TeSys Deca LRD thermal overload relay, 65A/1000V, thermal setting range 48-65A, tripping class 10A, for protection of 3-phase motors 30kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp/ lugs-ring terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX), Green Premium compliant (RoHs/Reach).
