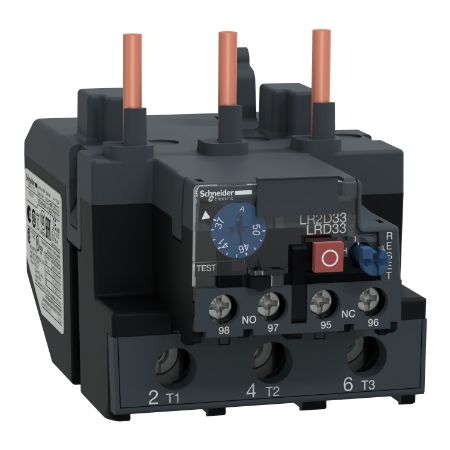

Picture of Thermal overload relay,TeSys Deca,37-50A,class 10A,1000V
SKU:

LRD3357A66

Thermal overload relay,TeSys Deca,37-50A,class 10A,1000V

Old price: $973.50 INC GST
$613.30 INC GST
Availability: Please contact our sales team on 1300 724 622.
Thermal overload relay,TeSys Deca,37-50A,class 10A,1000V
  • Easy to separate or direct mounting of OLR with CTR, save installation and assembly of panel components
  • Remote reset of relay without opening of panel doors, ensuring safety to personnel
  • with relay trip indicator to facilitate motor status monitoring
  • Simple mounting on DIN rail or screw fixing
  • Green Premium product
  • Multi sdandards certified makes it possible to wide application
  • Simple and quick maintenance with compact size
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys Deca LRD thermal overload relay, 50A/1000V, thermal setting range 37-50A, tripping class 10A, for protection of 3-phase motors 22kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp/ lugs-ring terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LRD
Product compatibility LC1D80, LC1D95
[Ui] rated insulation voltage power circuit: 600 V conforming to UL, power circuit: 600 V conforming to CSA, power circuit: 1000 V conforming to IEC 60947-4-1
Range TeSys
Thermal overload class class 10A conforming to IEC 60947-4-1
Product name TeSys Deca, TeSys LRD
Product or component type differential thermal overload relay
Relay application motor protection
Network type AC, DC
Thermal protection adjustment range 37-50 A
Complementary
Temperature compensation -20-60 °C
Depth 115 mm
Width 70 mm
Compatibility code LRD
Mounting support under contactor, rail, with specific accessories, plate, with specific accessories
Control type blue push-button: reset, red push-button: stop
Tightening torque power circuit: 11.3 N.m - on lugs-ring terminals M10, control circuit: 1.7 N.m - on screw clamp terminals
Tripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Permissible current 0.06 A at 440 V DC-13 for signalling circuit, 0.72 A at 500 V AC-15 for signalling circuit
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.51 kg
Associated fuse rating 4 A BS for signalling circuit, 4 A gG for signalling circuit
[Ue] rated operational voltage 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Phase failure sensitivity tripping current 130 % of Ir on two phase, the last one at 0
Connections - terminals power circuit: lugs-ring terminals, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end
Connection pitch 17.5 mm
[Ith] conventional free air thermal current 5 A for signalling circuit
Auxiliary contact composition 1 NO + 1 NC
Height 81 mm
Network frequency 0...400 Hz
Environment
Ambient air temperature for storage -60-70 °C
Flame retardance V1 conforming to UL 94
IP degree of protection IP20 conforming to IEC 60529
Dielectric strength 2.2 kV at 50 Hz conforming to IEC 60947-1
Ambient air temperature for operation -20-60 °C without derating conforming to IEC 60947-4-1
Climatic withstand conforming to IACS E10
Standards GB/T 14048.5, GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Mechanical robustness shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7, vibrations: 6 Gn conforming to IEC 60068-2-6
Product certifications UKCA, EAC, CCC, CSA, UL, IEC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.7 cm
Package 1 Width 8.5 cm
Package 1 Length 11.8 cm
Package 1 Weight 402.0 g
