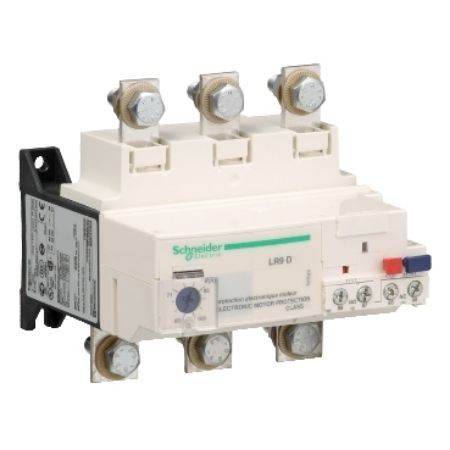

Picture of TeSys, Thermal overload relays, TeSys Deca, 60...100A, class 20
SKU:

LR9D5567

TeSys, Thermal overload relays, TeSys Deca, 60...100A, class 20

Old price: $1,529.00 INC GST
$963.27 INC GST
Available for Shipping : 11-Aug-2025
Product Selector
TeSys, Thermal overload relays, TeSys Deca, 60...100A, class 20
  • Ensure high safty with phase failure and load unbalance detection
  • The thermal adjustement dial enables accurate and reliable operation
  • It is designed with a transparent cover lockable by sealing in case of misoperation
  • Simple mounting on DIN rail or screw fixing
  • Green Premium product
  • Multi sdandards certified makes it possible to wide application
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Declaration of conformity
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
TeSys LR9D electronic overload relay, 100A/1000V, thermal setting range 60-100A, tripping class 20, for protection of 3-phase motors 37-45kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by bolt terminals for bars or cables with lugs, it connects directly to the bottom terminals of 3-pole contactors LC1D115, D150. Mounting on DIN rail or screw fixing, separated from contactor, can be done without accessories. Multi-standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LR9D
Product compatibility LC1D115, NSX circuit breaker, LC1D150
[Ui] rated insulation voltage power circuit: 600 V conforming to UL, power circuit: 600 V conforming to CSA, power circuit: 1000 V conforming to IEC 60947-4-1
Range TeSys
Thermal overload class class 20 conforming to IEC 60947-4-1
Product name TeSys Deca, TeSys LRD
Product or component type electronic thermal overload relay
Relay application motor protection
Network type AC
Thermal protection adjustment range 60-100 A
Signalling function alarm
Complementary
Temperature compensation -20-60 °C
[Us] rated supply voltage 24 V DC
Depth 125 mm
Width 115 mm
Compatibility code LR9D
Mounting support rail, under contactor
Control type blue push-button: reset, red push-button: stop
Tightening torque control circuit: 1.2 N.m - on screw clamp terminals, power circuit: 18 N.m - on bars M8, alarm circuit: 0.45 N.m - on screw clamp terminals
Tripping threshold 1.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1, 1.05 +/- 0.06 In alarm conforming to IEC 60947-4-1
Supply voltage limits 17-32 V
Maximum voltage drop <2.5 V closed state
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.885 kg
Associated fuse rating 4 A BS for signalling circuit, 4 A gG for signalling circuit
Switching capacity in mA 0...150 mA
[Ue] rated operational voltage 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Phase failure sensitivity tripping in 4 s +/- 20 % conforming to IEC 60947-4-1
Connections - terminals alarm circuit: screw clamp terminals 1 cable(s) 0.5-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 0.5-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 0.5-1.5 mm² flexible without cable end, power circuit: bars
[Ith] conventional free air thermal current 5 A for signalling circuit
Auxiliary contact composition 1 NO + 1 NC
Height 118 mm
Network frequency 50...60 Hz
Environment
Operating altitude <= 2000 m without derating
Ambient air temperature for storage -60-70 °C
IP degree of protection IP20 conforming to IEC 60529
Dielectric strength 1.89 kV at 50 Hz conforming to IEC 60947-1
Ambient air temperature for operation -20-60 °C without derating conforming to IEC 60947-4-1
Climatic withstand conforming to IACS E10
Standards GB/T 14048.5, GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Mechanical robustness shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7, vibrations: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Product certifications UKCA, CCC, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.0 cm
Package 1 Width 15.5 cm
Package 1 Length 13.0 cm
Package 1 Weight 935.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 12.005 kg
