Picture of Thermal overload relay,TeSys K,0.54-0.8 A,class 10A
SKU:

LR7K0305

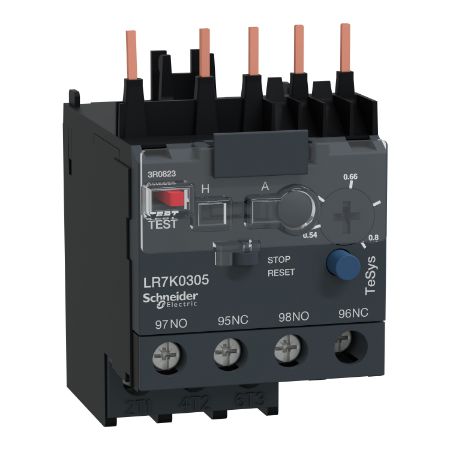

Thermal overload relay,TeSys K,0.54-0.8 A,class 10A

Old price: $88.44 INC GST
$55.72 INC GST
Available for Shipping : 14-Aug-2025
Product Selector
Thermal overload relay,TeSys K,0.54-0.8 A,class 10A
  • Easy to separate or direct mounting of OLR with CTR, save installation and assembly of panel components
  • selection of reset mode: Manual (marked H) or Automatic (marked A),
  • with relay trip indicator to facilitate motor status monitoring
  • Widely used for industry, infrastructure and building applications.
  • Designed for simple control systems
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
TeSys LRK thermal overload relay, thermal setting range 0.54-0.8A, tripping class 10A, for protection of 3-phase motors. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of TeSys K contactors. Mounting on DIN rail or screw fixing, separated from the contactor, with using terminal block LA7K0064 (to be ordered separately).

Products specifications

Attribute name Attribute value
Main
Device short name LR7K
Product compatibility LP4K, LC1K, LP1K, LC7K
[Ui] rated insulation voltage power circuit: 600 V conforming to CSA C22.2 No 14, power circuit: 750 V conforming to VDE 0110 group C, power circuit: 690 V conforming to IEC 60947, power circuit: 690 V conforming to BS 4941
Range TeSys
Thermal overload class class 10A conforming to IEC 60947-4-1
Product name TeSys LRK
Product or component type non differential thermal overload relay
Relay application motor protection
Network type AC, DC
Thermal protection adjustment range 0.54-0.8 A
Range of product TeSys K thermal overload relays
Complementary
Depth 65 mm
Width 45 mm
Compatibility code LR7K
Mounting support rail, with specific accessories, plate, with specific accessories, under contactor
Control type selector switch: manual or automatic reset, blue push-button: stop and manual reset, red push-button: trip test function
Tightening torque 1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2
Local signalling trip indicator (yellow)
Power dissipation per pole 2 W
[Uimp] rated impulse withstand voltage 6 kV
Connections - terminals screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 1.5-4 mm²solid
Net weight 0.145 kg
Associated fuse rating 6 A gG for signalling circuit conforming to IEC 60947, 6 A gG for signalling circuit conforming to VDE 0660
[Ue] rated operational voltage 250 V DC DC-13 for signalling circuit, 690 V AC AC-15 for signalling circuit, <= 690 V for power circuit
[Ith] conventional free air thermal current 6 A for signalling circuit
Auxiliary contact composition 1 NO + 1 NC
Height 58 mm
Network frequency <= 400 Hz
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 2000 m without derating
Protective treatment TC conforming to DIN 50016, TC conforming to IEC 60068
Ambient air temperature for storage -40-70 °C
Flame retardance requirement 2 conforming to NF F 16-102, requirement 2 conforming to NF F 16-101, V1 conforming to UL 94
IP degree of protection IP2X conforming to IEC 60529
Ambient air temperature for operation -30-60 °C with derating conforming to IEC 60947, -20-55 °C without derating conforming to IEC 60947
Standards VDE 0660, NF C 63-650, IEC 60947, BS 4941
Mechanical robustness vibrations NC contact: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations NO contact: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks NC contact: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks NO contact: 10 Gn for 11 ms conforming to IEC 60068-2-27
Product certifications UKCA, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 7.2 cm
Package 1 Length 8.5 cm
Package 1 Weight 148.0 g
Unit Type of Package 2 2
Number of Units in Package 2 41
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.58 kg

Related products

Picture of Contactor, TeSys K, 3P, AC-3/AC-3e,440V 6A, aux. 1NO, 24V AC coil, screw clamp terminals

Contactor, TeSys K, 3P, AC-3/AC-3e,440V 6A, aux. 1NO, 24V AC coil, screw clamp terminals

LC1K0610B7
$45.88 INC GST $72.82 INC GST
View Detail
