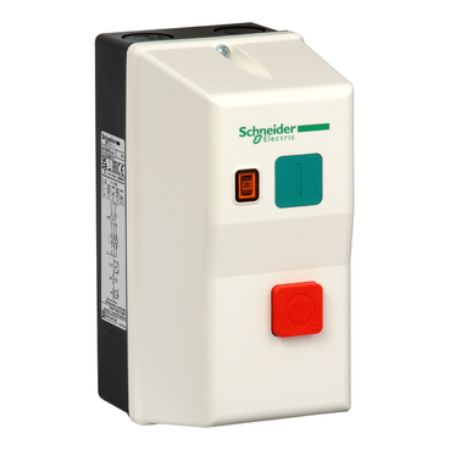

Picture of TeSys; TeSys LE, enclosed DOL starter, 5.5...8 A, 240 V AC coil
SKU:

LE1M35U714

TeSys; TeSys LE, enclosed DOL starter, 5.5...8 A, 240 V AC coil

Old price: $130.68 INC GST
$82.33 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
TeSys; TeSys LE, enclosed DOL starter, 5.5...8 A, 240 V AC coil
  • Polycarbonate enclosure provides high level protection against water, dust and mechanical compact
  • Environmentally friendly product
  • Good performance on motor protection against overload, work with overload relay
  • Easy to use with pushbuttons at the front
  • Multiple resetting methods: manual & remotely
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LE1M
Device application standard
Range TeSys
Motor power kW 1.5 kW at 220/230 V AC 50/60 Hz, 3 kW at 380/400 V AC 50/60 Hz, 1.1 kW at 240 V AC 50/60 Hz, 3 kW at 415 V AC 50/60 Hz
Control type push-button stop/reset red O, push-button start green I
Utilisation category AC-3
Device composition thermal overload relay, neutral terminal, earth terminal, contactor
Product name TeSys LE
Product or component type enclosed DOL starter
Thermal protection adjustment range 5.5-8 A
[Uc] control circuit voltage 240 V AC 50/60 Hz
Complementary
Compatibility code LE1M
Local signalling operating: LED (yellow)
Height 160 mm
Depth 108 mm
Width 78 mm
Cable entry number 2 Pg 16 top, 2 Pg 21 bottom, 2 Pg 13 bottom, 2 ISO25 bottom, 2 ISO20 bottom, 2 Pg 21 top, 2 Pg 13 top, 2 ISO25 top, 2 Pg 16 bottom, 2 ISO20 top
Net weight 0.6 kg
Environment
IP degree of protection IP65 conforming to IEC 60529
Environmental characteristic standard environment
Ambient air temperature for operation -5-40 °C
Material ABS (acrylonitrile butadiene-styrene)
Standards IEC 60947-4-1
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.500 cm
Package 1 Width 16.500 cm
Package 1 Length 8.200 cm
Package 1 Weight 572.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.732 kg
