SKU:

LE1M35U712

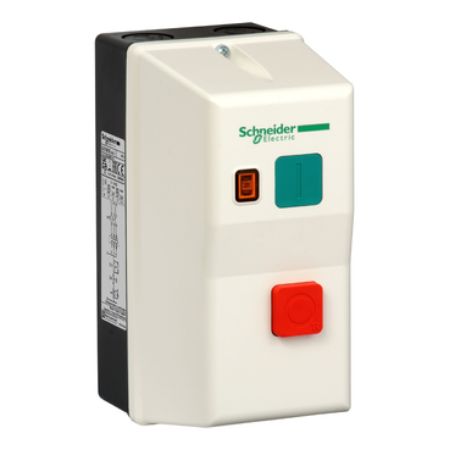

TeSys; TeSys LE, enclosed DOL starter, 3.7...5.5 A, 240 V AC coil

Old price: $130.68 INC GST

Price: $82.33 INC GST

Qty:

Available for Shipping : 24-Jul-2025

Product Selector

TeSys; TeSys LE, enclosed DOL starter, 3.7...5.5 A, 240 V AC coil

Manufacturer: Schneider Electric

Catalog

Circularity Profile

Environmental Disclosure

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	LE1M
Device application	standard
Motor power kW	2.2 kW at 380/400 V AC 50/60 Hz, 1.1 kW at 220/230 V AC 50/60 Hz, 2.2 kW at 415 V AC 50/60 Hz, 0.75 kW at 240 V AC 50/60 Hz
Control type	push-button stop/reset red O, push-button start green I
Utilisation category	AC-3
Device composition	thermal overload relay, neutral terminal, earth terminal, contactor
Range	TeSys
Product name	TeSys LE
Product or component type	enclosed DOL starter
Thermal protection adjustment range	3.7-5.5 A
[Uc] control circuit voltage	240 V AC 50/60 Hz
Complementary
Depth	108 mm
Width	78 mm
Compatibility code	LE1M
Local signalling	operating: LED (yellow)
Cable entry number	2 Pg 16 top, 2 Pg 21 bottom, 2 Pg 13 bottom, 2 ISO25 bottom, 2 ISO20 bottom, 2 Pg 21 top, 2 Pg 13 top, 2 ISO25 top, 2 Pg 16 bottom, 2 ISO20 top
Net weight	0.6 kg
Height	160 mm
Environment
IP degree of protection	IP65 conforming to IEC 60529
Environmental characteristic	standard environment
Material	ABS (acrylonitrile butadiene-styrene)
Standards	IEC 60947-4-1
Ambient air temperature for operation	-5-40 °C
Product certifications	UKCA
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.5 cm
Package 1 Width	11.5 cm
Package 1 Length	16.5 cm
Package 1 Weight	577.0 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	3.728 kg
