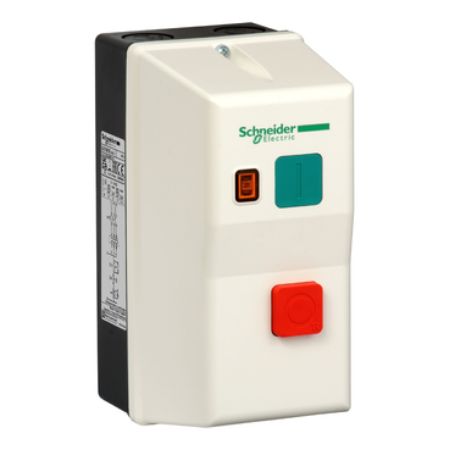

Picture of TeSys; TeSys LE, enclosed DOL starter, 2.6...3.7 A, 24 V AC coil
SKU:

LE1M35B710

TeSys; TeSys LE, enclosed DOL starter, 2.6...3.7 A, 24 V AC coil

Old price: $130.68 INC GST
$82.33 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
TeSys; TeSys LE, enclosed DOL starter, 2.6...3.7 A, 24 V AC coil
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LE1M
Device application standard
Motor power kW 1.5 kW at 380/400 V AC 50/60 Hz, 0.55 kW at 220/230 V AC 50/60 Hz, 1.5 kW at 415 V AC 50/60 Hz, 0.55 kW at 240 V AC 50/60 Hz
Control type push-button stop/reset red O, push-button start green I
Utilisation category AC-3
Device composition thermal overload relay, neutral terminal, earth terminal, contactor
Range TeSys
Product name TeSys LE
Product or component type enclosed DOL starter
Thermal protection adjustment range 2.6-3.7 A
[Uc] control circuit voltage 24 V AC 50/60 Hz
Complementary
Depth 108 mm
Width 78 mm
Compatibility code LE1M
Local signalling operating: LED (yellow)
Cable entry number 2 Pg 16 top, 2 Pg 21 bottom, 2 Pg 13 bottom, 2 ISO25 bottom, 2 ISO20 bottom, 2 Pg 21 top, 2 Pg 13 top, 2 ISO25 top, 2 Pg 16 bottom, 2 ISO20 top
Net weight 0.6 kg
Height 160 mm
Environment
IP degree of protection IP65 conforming to IEC 60529
Environmental characteristic standard environment
Material ABS (acrylonitrile butadiene-styrene)
Standards IEC 60947-4-1
Ambient air temperature for operation -5-40 °C
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.500 cm
Package 1 Width 16.800 cm
Package 1 Length 8.000 cm
Package 1 Weight 565.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.650 kg
Unit Type of Package 3 3
Number of Units in Package 3 96
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 66.400 kg
