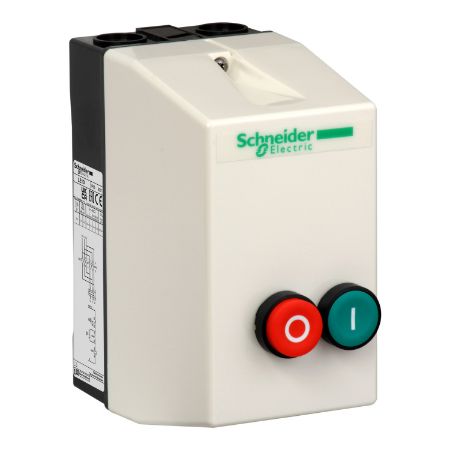

Picture of TeSys; TeSys LE, enclosed DOL starter, 35 A, 110 V AC coil
SKU:

LE1D35F7

TeSys; TeSys LE, enclosed DOL starter, 35 A, 110 V AC coil

Old price: $495.55 INC GST
$312.20 INC GST
Available for Shipping : 19-Aug-2025
Product Selector
TeSys; TeSys LE, enclosed DOL starter, 35 A, 110 V AC coil
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LE1D
Device application standard
Range TeSys
Control type push-button stop/reset red O, push-button start green I
Utilisation category AC-3
Device composition contactor, thermal overload relay ordered separately
Product name TeSys LE
Product or component type enclosed DOL starter
Complementary
Compatibility code LE1D
Height 201 mm
[Ithe] conventional enclosed thermal current 26.5 A
Motor power kW 18.5 kW at 660/690 V AC 50/60 Hz, 18.5 kW at 500 V AC 50/60 Hz, 7.5 kW at 220/230 V AC 50/60 Hz, 15 kW at 440 V AC 50/60 Hz, 15 kW at 415 V AC 50/60 Hz, 15 kW at 380/400 V AC 50/60 Hz
Depth 153.5 mm
Width 101 mm
Cable entry number 2 ISO25 bottom, 2 ISO20 bottom, 2 ISO25 top, 2 ISO20 top
Net weight 4.32 kg
[Uc] control circuit voltage 110 V AC 50/60 Hz
Environment
IP degree of protection IP65 conforming to IEC 60529
Environmental characteristic standard environment
Ambient air temperature for operation -5-40 °C
IK degree of protection IK07 conforming to IEC 60529
Material polycarbonate
Standards IEC 60947-4-1
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.500 cm
Package 1 Width 16.500 cm
Package 1 Length 24.000 cm
Package 1 Weight 4.320 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 9.060 kg
Unit Type of Package 3 3
Number of Units in Package 3 16
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 80.480 kg
