SKU:

LE1D25Q7

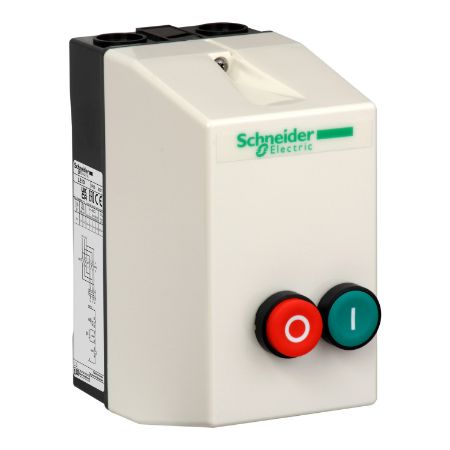

TeSys; TeSys LE, enclosed DOL starter, 25 A, 380 V AC coil

Old price: $360.25 INC GST

Price: $226.96 INC GST

Qty:

Available for Shipping : 12-Aug-2025

Product Selector

TeSys; TeSys LE, enclosed DOL starter, 25 A, 380 V AC coil

Manufacturer: Schneider Electric

Catalog

Circularity Profile

Environmental Disclosure

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	LE1D
Device application	standard
Control type	push-button stop/reset red O, push-button start green I
Utilisation category	AC-3
Device composition	contactor, thermal overload relay ordered separately
Range	TeSys
Product name	TeSys LE
Product or component type	enclosed DOL starter
Complementary
[Ithe] conventional enclosed thermal current	22 A
Motor power kW	5.5 kW at 220/230 V AC 50/60 Hz, 15 kW at 660/690 V AC 50/60 Hz, 15 kW at 500 V AC 50/60 Hz, 11 kW at 440 V AC 50/60 Hz, 11 kW at 415 V AC 50/60 Hz, 11 kW at 380/400 V AC 50/60 Hz
Depth	153.5 mm
Width	101 mm
Compatibility code	LE1D
Cable entry number	2 ISO25 bottom, 2 ISO20 bottom, 2 ISO25 top, 2 ISO20 top
Net weight	1.015 kg
Height	201 mm
[Uc] control circuit voltage	380 V AC 50/60 Hz
Environment
IP degree of protection	IP65 conforming to IEC 60529
Environmental characteristic	standard environment
Material	polycarbonate
Standards	IEC 60947-4-1
Ambient air temperature for operation	-5-40 °C
IK degree of protection	IK07 conforming to IEC 60529
Product certifications	UKCA
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	20.500 cm
Package 1 Width	18.500 cm
Package 1 Length	26.000 cm
Package 1 Weight	1.242 kg
Unit Type of Package 2	2
Number of Units in Package 2	22
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	40.258 kg
