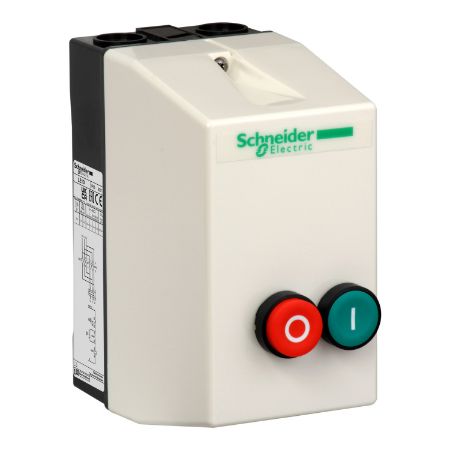

Picture of TeSys; TeSys LE, enclosed DOL starter, 25 A, 415 V AC coil
SKU:

LE1D25N7

TeSys; TeSys LE, enclosed DOL starter, 25 A, 415 V AC coil

Old price: $366.30 INC GST
$230.77 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
TeSys; TeSys LE, enclosed DOL starter, 25 A, 415 V AC coil
  • Polycarbonate enclosure provides high level protection against water, dust and mechanical compact
  • Environmentally friendly product
  • Good performance on motor protection against overload, work with overload relay
  • Easy to use with ON/OFF pushbuttons at the front
  • Multiple resetting methods: manual & remotely
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LE1D
Device application standard
Range TeSys
Control type push-button stop/reset red O, push-button start green I
Utilisation category AC-3
Device composition contactor, thermal overload relay ordered separately
Product name TeSys LE
Product or component type enclosed DOL starter
Complementary
Compatibility code LE1D
Height 201 mm
[Ithe] conventional enclosed thermal current 22 A
Motor power kW 5.5 kW at 220/230 V AC 50/60 Hz, 15 kW at 660/690 V AC 50/60 Hz, 15 kW at 500 V AC 50/60 Hz, 11 kW at 440 V AC 50/60 Hz, 11 kW at 415 V AC 50/60 Hz, 11 kW at 380/400 V AC 50/60 Hz
Depth 153.5 mm
Width 101 mm
Cable entry number 2 ISO25 bottom, 2 ISO20 bottom, 2 ISO25 top, 2 ISO20 top
Net weight 1.015 kg
[Uc] control circuit voltage 415 V AC 50/60 Hz
Environment
IP degree of protection IP65 conforming to IEC 60529
Environmental characteristic standard environment
Ambient air temperature for operation -5-40 °C
IK degree of protection IK07 conforming to IEC 60529
Material polycarbonate
Standards IEC 60947-4-1
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.000 cm
Package 1 Width 16.000 cm
Package 1 Length 25.000 cm
Package 1 Weight 1.243 kg
Unit Type of Package 2 2
Number of Units in Package 2 22
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 40.368 kg
