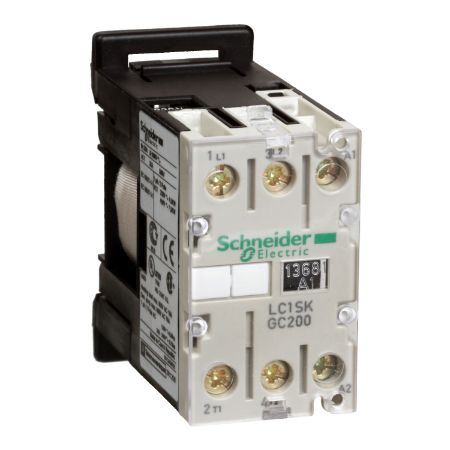

Picture of Mini contactor, TeSys SK, 2P(2NO), AC-3, 690V 5A, 240V AC coil
SKU:

LC1SKGC200U7

Mini contactor, TeSys SK, 2P(2NO), AC-3, 690V 5A, 240V AC coil

Old price: $99.11 INC GST
$62.44 INC GST
Available for Shipping : 20-Aug-2025
Mini contactor, TeSys SK, 2P(2NO), AC-3, 690V 5A, 240V AC coil
  • It is desingned with transparent protective cover at front for double security
  • Good adaptability: possible to insert a suppressor module
  • High durability & stable performance: up to 1200 cycles/hour for operating rates
  • Reliable in high and low temperature environment
  • Modularity design and compact size for easy maintenance, save time and space on installation
  • Wide application with multi standards certifications
  • Compliant with Green Premium
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
TeSys SKGC mini-contactor, 2 poles (2NO), for non-inductive load applications up to 20A/690V AC-1, and for 1-phase motor control applications up to 5A/690V AC-3. It provides a 240V 50/60Hz AC control circuit, a transparent protective cover to prevent front face access, connection by screw terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. For use in modular panels, compact (27mm width), clipping on 35mm DIN rail. Location available to insert a suppressor module LA4SK (to be ordered separately). Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1SKGC
Range TeSys
Range of product TeSys SK
Poles description 2P
[Ie] rated operational current 20 A (at <50 °C) AC AC-1, 5 A at <= 400 V AC AC-3
Utilisation category AC-1, AC-3
Pole contact composition 2 NO
Product name TeSys SK
Product or component type mini contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage power circuit: 690 V AC 50/60 Hz
Complementary
Heat dissipation 1.4-1.4 W at 50/60 Hz
[Icw] rated short-time withstand current 40 A 55 °C for power circuit
Compatibility code LC1SKGC
Mechanical durability 10 Mcycles
Tightening torque power circuit: 0.8 N.m - on connector - with screwdriver pozidriv No 1
Connections - terminals connector 2 cable(s) 0.35-1.5 mm²flexible with cable end, connector 1 cable(s) 0.35-6 mm²flexible with cable end, connector 2 cable(s) 0.35-2.5 mm²flexible without cable end, connector 1 cable(s) 0.5-6 mm²flexible without cable end, connector 2 cable(s) 1.5-4 mm²solid, connector 1 cable(s) 1.5-6 mm²solid
Associated fuse rating 20 A gI at <= 440 V for power circuit
Irms rated making capacity 50 A AC conforming to IEC 60947, 50 A AC conforming to NF C 63-110
Rated breaking capacity 40 A at <= 400 V conforming to IEC 60947, 40 A at <= 400 V conforming to NF C 63-110
Control circuit type AC at 50/60 Hz
[Ith] conventional free air thermal current 20 A (at 55 °C) for power circuit
Control circuit voltage limits drop-out: 0.2...0.75 Uc at 50/60 Hz (at <55 °C), operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C)
[Ui] rated insulation voltage power circuit: 690 V conforming to CSA C22.2 No 14, power circuit: 690 V conforming to VDE 0110 group C, power circuit: 690 V conforming to UL 508, power circuit: 690 V conforming to IEC 60947, power circuit: 690 V conforming to BS 5424
Operating time 7...14 ms coil energisation and NO closing, 6...8 ms coil de-energisation and NO opening
Hold-in power consumption in VA 4.2-4.2 VA 50/60 Hz (at 20 °C)
Maximum operating rate 1200 cyc/h
Inrush power in VA 16-16 VA 50/60 Hz (at 20 °C)
Mounting support rail
Standards CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Average impedance 4 mOhm - Ith 20 A 50 Hz for power circuit
[Uc] control circuit voltage 240 V AC 50/60 Hz
Product certifications cULus, EAC, UKCA, CE, CB Scheme
Environment
IP degree of protection IP2X conforming to VDE 0106
Protective treatment TC conforming to DIN 50015, TC conforming to IEC 60068
Ambient air temperature for storage -50-70 °C
Ambient air temperature for operation -20-50 °C
Height 56 mm
Depth 55.5 mm
Width 27 mm
Operating altitude 2000 m without derating
Net weight 0.132 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.200 cm
Package 1 Width 6.000 cm
Package 1 Length 6.700 cm
Package 1 Weight 129.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.194 kg
Unit Type of Package 3 3
Number of Units in Package 3 1280
Package 3 Height 135.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 176.200 kg
