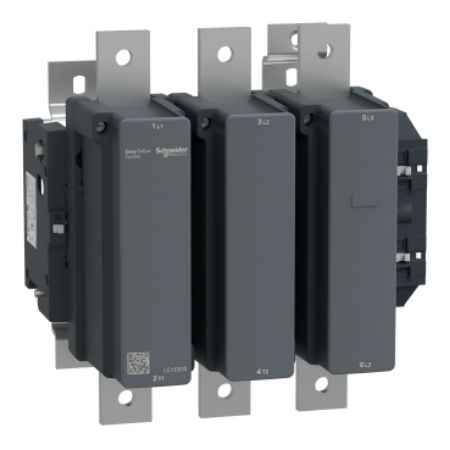

Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,630A,110V AC coil
SKU:

LC1E630F7

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,630A,110V AC coil

$3,781.47 INC GST
Available for Shipping : 20-Nov-2025
Product Selector
Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,630A,110V AC coil
  • Easy Tesys TVS Contactor provide a cost-effective solution to a simple application
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • 2 principles to build your starter solution,To build the essential solutions in an easy and simple way.
  • Easy choice for simple applications
  • Various Relay Coil Voltages: A.C
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
EasyPact TVS contactor 3 poles for motor applications up to 630A 400kW@440V. It provides a 110V 50/60Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 309mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.6 Mcycles electrical durability AC-3 and 4 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LC1E
Poles description 3P
[Ie] rated operational current 1000 A (at <55 °C) at <= 440 V AC AC-1 for power circuit, 630 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-3, AC-1
Range Easy TeSys
Product or component type contactor
Contactor application motor control, resistive load
Range of product Easy TeSys Control
[Ue] rated operational voltage power circuit: <= 690 V AC 50/60 Hz
[Uc] control circuit voltage 110 V AC 50/60 Hz
Complementary
Heat dissipation 20-20 W, 20-20 W for control circuit
[Icw] rated short-time withstand current 5050 A 40 °C - 10 s for power circuit
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
Motor power kW 450 kW at 660...690 V, 400 kW at 500 V, 400 kW at 440 V, 375 kW at 415 V, 335 kW at 380...400 V, 185 kW at 220...230 V AC 50/60 Hz
Overvoltage category III
Hold-in power consumption in VA 22-22 VA 60 Hz cos phi 0.9 (at 20 °C), 22-22 VA 50 Hz cos phi 0.9 (at 20 °C)
Mechanical durability 4000000 cycles
Electrical durability 600000 cycles AC-3, 200000 cycles AC-1
Tightening torque power circuit: 58 N.m, control circuit: 1.2 N.m
Maximum operating rate 1200 cyc/h 55 °C
Minimum switching voltage 17 V for control circuit
Operating time 100...200 ms on opening, 40...80 ms on closing
Connections - terminals power circuit: bars 2 - busbar cross section: 60 x 5 mm, power circuit: cable with lug 2 , control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 8 kV coil not connected to the power circuit conforming to IEC 60947
Inrush power in VA 1650-1650 VA 60 Hz cos phi 0.9 (at 20 °C), 1650-1650 VA 50 Hz cos phi 0.9 (at 20 °C)
Associated fuse rating 800 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
Irms rated making capacity 6300 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 5040 A at 440 V for power circuit conforming to IEC 60947
Insulation resistance > 10 MOhm for control circuit
Pollution degree 3
Control circuit type AC at 50/60 Hz
Mounting support plate
Control circuit voltage limits 0.25...0.5 Uc (-5-55 °C):drop-out 50/60 Hz, 0.85...1.1 Uc (-5-55 °C):operational 50/60 Hz
[Ith] conventional free air thermal current 1000 A (at 40 °C) for power circuit
Average impedance 0.12 mOhm - Ith 1000 A 50 Hz for power circuit
Power dissipation per pole 120 W AC-1, 48 W AC-3
Minimum switching current 5 mA for control circuit
Non-overlap time 1.5 ms on de-energisation guaranteed between NC and NO contact, 1.5 ms on energisation guaranteed between NC and NO contact
Environment
Permissible ambient air temperature around the device -5-55 °C operation, -60-80 °C storage, -20-70 °C at Uc
Depth 255 mm
Width 309 mm
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 3000 m without derating
Mechanical robustness vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz) , shocks contactor closed (15 Gn for 11 ms) , shocks contactor open (6 Gn for 11 ms)
IP degree of protection IP00 conforming to IEC 60529
Net weight 18.6 kg
Standards IEC 60947-4-1, IEC 60947-1, IEC 60947-5-1
Height 464 mm
Product certifications CE, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.9 cm
Package 1 Width 46.4 cm
Package 1 Length 25.5 cm
Package 1 Weight 19.6 kg
