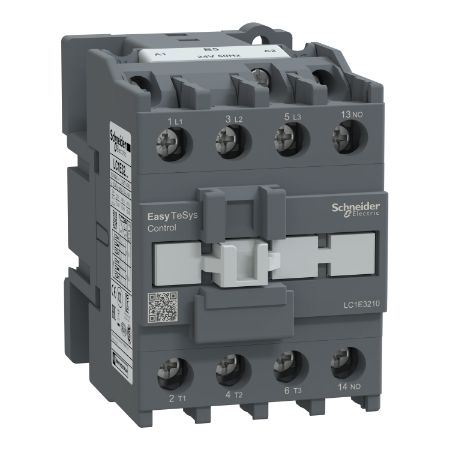

Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,32A,24V AC coil,50Hz,1NO auxiliary contact
SKU:

LC1E3210B5

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,32A,24V AC coil,50Hz,1NO auxiliary contact

$94.25 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,32A,24V AC coil,50Hz,1NO auxiliary contact
  • Easy Tesys TVS Contactor provide a cost-effective solution to a simple application
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • 2 principles to build your starter solution,To build the essential solutions in an easy and simple way.
  • Easy choice for simple applications
  • Various Relay Coil Voltages: A.C
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
EasyPact TVS contactor 3 poles for motor applications up to 32A 15kW@440V. It provides a 24V 50Hz AC coil, 1NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 56mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 1 Mcycles electrical durability AC-3 and 8 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LC1E
Poles description 3P
[Ie] rated operational current 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 32 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-3, AC-1
Range Easy TeSys
Product or component type contactor
Contactor application resistive load, motor control
Range of product Easy TeSys Control
[Ue] rated operational voltage power circuit: <= 690 V AC 50/60 Hz
[Uc] control circuit voltage 24 V AC 50 Hz
Complementary
Heat dissipation 2-3 W for control circuit
[Icw] rated short-time withstand current 60 A 40 °C - 600 s for power circuit, 138 A 40 °C - 60 s for power circuit, 260 A 40 °C - 10 s for power circuit
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
Motor power kW 18.5 kW at 660...690 V AC 50/60 Hz (AC-3), 18.5 kW at 500 V AC 50/60 Hz (AC-3), 15 kW at 440 V AC 50/60 Hz (AC-3), 15 kW at 415 V AC 50/60 Hz (AC-3), 15 kW at 380...400 V AC 50/60 Hz (AC-3), 7.5 kW at 220...230 V AC 50/60 Hz (AC-3)
Overvoltage category III
Hold-in power consumption in VA 8.5-8.5 VA 60 Hz cos phi 0.3 (at 20 °C), 8.3-8.3 VA 50 Hz cos phi 0.3 (at 20 °C)
Mechanical durability 8000000 cycles
Electrical durability 350000 cycles AC-1, 1000000 cycles AC-3
Tightening torque power circuit: 2.1 N.m, control circuit: 1.2 N.m
Maximum operating rate 1800 cyc/h 60 °C
Minimum switching voltage 17 V for control circuit
Operating time 4...19 ms on opening, 12...22 ms on closing
Connections - terminals power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-6 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 6 kV coil not connected to the power circuit conforming to IEC 60947
Inrush power in VA 95-95 VA 60 Hz cos phi 0.75 (at 20 °C), 95-95 VA 50 Hz cos phi 0.75 (at 20 °C)
Associated fuse rating 63 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
Irms rated making capacity 320 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 256 A at 440 V for power circuit conforming to IEC 60947
Insulation resistance > 10 MOhm for control circuit
Pollution degree 3
Control circuit type AC at 50 Hz
Mounting support DIN rail, plate
Control circuit voltage limits 0.3...0.6 Uc (-5-55 °C):drop-out 50 Hz, 0.85...1.1 Uc (-5-55 °C):operational 50 Hz
[Ith] conventional free air thermal current 50 A (at 55 °C)
Auxiliary contact composition 1 NO
Average impedance 2.5 mOhm - Ith 50 A 50 Hz for power circuit
Power dissipation per pole 5 W AC-1, 2 W AC-3
Minimum switching current 5 mA for control circuit
Non-overlap time 1.5 ms on de-energisation guaranteed between NC and NO contact, 1.5 ms on energisation guaranteed between NC and NO contact
Environment
Permissible ambient air temperature around the device -5-55 °C operation, -60-80 °C storage, -20-70 °C at Uc
Depth 86 mm
Width 56 mm
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 3000 m without derating
Mechanical robustness shocks contactor open (6 Gn for 11 ms) , shocks contactor closed (10 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , vibrations contactor open (1.5 Gn, 5...300 Hz)
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Net weight 0.45 kg
Standards IEC 60947-1, IEC 60947-5-1, IEC 60947-4-1
Height 84 mm
Product certifications CE, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 7.500 cm
Package 1 Length 8.500 cm
Package 1 Weight 452.000 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.115 kg
Unit Type of Package 3 3
Number of Units in Package 3 384
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 185.840 kg
