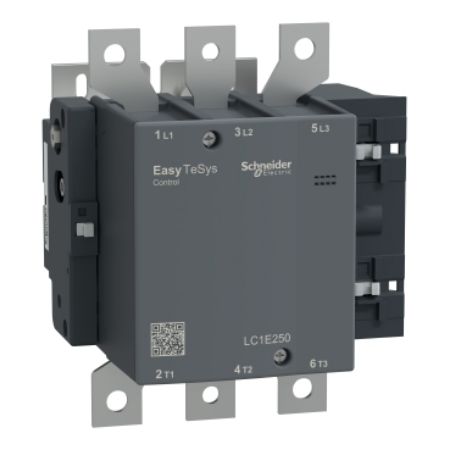

Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,250A,24V AC coil,50Hz
SKU:

LC1E250B5

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,250A,24V AC coil,50Hz

$1,053.36 INC GST
Available for Shipping : 23-Jul-2025
Product Selector
Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,250A,24V AC coil,50Hz
  • Easy Tesys TVS Contactor provide a cost-effective solution to a simple application
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • 2 principles to build your starter solution,To build the essential solutions in an easy and simple way.
  • Easy choice for simple applications
  • Various Relay Coil Voltages: A.C
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
EasyPact TVS contactor 3 poles for motor applications up to 250A 140kW@440V. It provides a 24V 50Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 168.5mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.7 Mcycles electrical durability AC-3 and 5 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LC1E
Poles description 3P
[Ie] rated operational current 300 A (at <40 °C) at <= 440 V AC AC-1 for power circuit, 250 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-1, AC-3
Range Easy TeSys
Product or component type contactor
Contactor application motor control, resistive load
Range of product Easy TeSys Control
[Ue] rated operational voltage power circuit: <= 690 V AC 50/60 Hz
[Uc] control circuit voltage 24 V AC 50 Hz
Complementary
Heat dissipation 18-24 W for control circuit
[Icw] rated short-time withstand current 1800 A 40 °C - 10 s for power circuit
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
Motor power kW 160 kW at 660...690 V, 160 kW at 500 V, 140 kW at 440 V, 140 kW at 415 V, 132 kW at 380...400 V, 75 kW at 220...230 V AC 50/60 Hz
Overvoltage category III
Hold-in power consumption in VA 66-66 VA 60 Hz cos phi 0.3 (at 20 °C), 55-55 VA 50 Hz cos phi 0.3 (at 20 °C)
Mechanical durability 5000000 cycles
Electrical durability 700000 cycles AC-3, 200000 cycles AC-1
Tightening torque power circuit: 35 N.m, control circuit: 1.2 N.m
Maximum operating rate 1200 cyc/h 55 °C
Minimum switching voltage 17 V for control circuit
Operating time 7...15 ms on opening, 20...35 ms on closing
Connections - terminals power circuit: bars 2 - busbar cross section: 32 x 4 mm, power circuit: cable with lug - external diameter: 185 mm, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 8 kV coil not connected to the power circuit conforming to IEC 60947
Inrush power in VA 970-970 VA 60 Hz cos phi 0.3 (at 20 °C), 805-805 VA 50 Hz cos phi 0.3 (at 20 °C)
Associated fuse rating 315 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
Irms rated making capacity 2500 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 2000 A at 440 V for power circuit conforming to IEC 60947
Insulation resistance > 10 MOhm for control circuit
Pollution degree 3
Control circuit type AC at 50 Hz
Mounting support plate
Control circuit voltage limits 0.35...0.55 Uc (-5-55 °C):drop-out 50 Hz, 0.85...1.1 Uc (-5-55 °C):operational 50 Hz
[Ith] conventional free air thermal current 36 A (at 55 °C)
Average impedance 0.32 mOhm - Ith 300 A 50 Hz for power circuit
Power dissipation per pole 29 W AC-1, 20 W AC-3
Minimum switching current 5 mA for control circuit
Non-overlap time 1.5 ms on de-energisation guaranteed between NC and NO contact, 1.5 ms on energisation guaranteed between NC and NO contact
Environment
Permissible ambient air temperature around the device -5-55 °C operation, -60-80 °C storage, -20-70 °C at Uc
Depth 181 mm
Width 168.5 mm
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 3000 m without derating
Mechanical robustness shocks contactor closed (7 Gn for 11 ms) , shocks contactor open (6 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , vibrations contactor open (1.5 Gn, 5...300 Hz)
IP degree of protection IP00 conforming to IEC 60529
Net weight 4.7 kg
Standards IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1
Height 197 mm
Product certifications CE, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 21.5 cm
Package 1 Width 24 cm
Package 1 Length 26 cm
Package 1 Weight 5.4 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 77 cm
Package 2 Width 80 cm
Package 2 Length 60 cm
Package 2 Weight 57.404 kg
Unit Type of Package 3 3
Number of Units in Package 3 12
Package 3 Height 73.5 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 77.8 kg
Unit Type of Package 4 4
Number of Units in Package 4 8
Package 4 Height 77.0 cm
Package 4 Width 80.0 cm
Package 4 Length 60.0 cm
Package 4 Weight 57.404 kg
