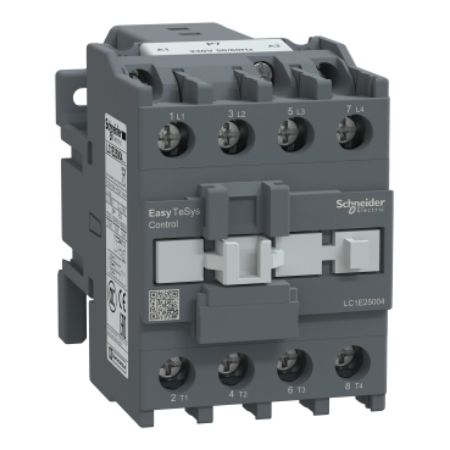

Picture of Contactor,Easy TeSys Control,LC1E,4P(4NO),AC-1 40A,230V
SKU:

LC1E25004P7

Contactor,Easy TeSys Control,LC1E,4P(4NO),AC-1 40A,230V

$65.49 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Contactor,Easy TeSys Control,LC1E,4P(4NO),AC-1 40A,230V
  • Easy Tesys TVS Contactor provide a cost-effective solution to a simple application
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • 2 principles to build your starter solution,To build the essential solutions in an easy and simple way.
  • Easy choice for simple applications
  • Various Relay Coil Voltages: A.C
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
EasyPact TVS contactor 4 poles for category AC-1 applications up to 40A. It provides a 2305V 50/60Hz AC coil, 4NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 45mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 0.35 Mcycles electrical durability and 8 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LC1E
Poles description 4P
[Ie] rated operational current 40 A (at <60 °C) at <= 415 V AC AC-1 for power circuit
Utilisation category AC-1
Range Easy TeSys
Product or component type contactor
Contactor application resistive load
Range of product Easy TeSys Control
[Ue] rated operational voltage power circuit: <= 690 V AC 50/60 Hz
[Uc] control circuit voltage 230 V AC 50/60 Hz
Complementary
Heat dissipation 2-3 W for control circuit
[Icw] rated short-time withstand current 50 A 40 °C - 600 s for power circuit, 120 A 40 °C - 60 s for power circuit, 240 A 40 °C - 10 s for power circuit
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
Overvoltage category III
Hold-in power consumption in VA 8.5-8.5 VA 60 Hz cos phi 0.3 (at 20 °C), 8.3-8.3 VA 50 Hz cos phi 0.3 (at 20 °C)
Mechanical durability 10000000 cycles
Electrical durability 350000 cycles AC-1, 1200000 cycles AC-3
Tightening torque power circuit: 1.5 N.m, control circuit: 1.2 N.m
Maximum operating rate 1800 cyc/h 60 °C
Operating time 4...19 ms on opening, 12...22 ms on closing
Connections - terminals power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-6 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 4 NO
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Inrush power in VA 95-95 VA 60 Hz cos phi 0.75 (at 20 °C), 95-95 VA 50 Hz cos phi 0.75 (at 20 °C)
Associated fuse rating 40 A gG at <= 690 V coordination type 1 for power circuit conforming to IEC 60947-5-1
Irms rated making capacity 250 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 200 A at 440 V for power circuit conforming to IEC 60947
Insulation resistance > 10 MOhm for control circuit
Pollution degree 3
Control circuit type AC at 50/60 Hz
Mounting support DIN rail, plate
Control circuit voltage limits 0.3...0.6 Uc (-5-55 °C):drop-out 50/60 Hz, 0.85...1.1 Uc (-5-55 °C):operational 50/60 Hz
[Ith] conventional free air thermal current 40 A (at 60 °C) for power circuit
Average impedance 2.5 mOhm - Ith 40 A 50 Hz for power circuit
Power dissipation per pole 3.2 W AC-1, 1.6 W AC-3
Environment
Permissible ambient air temperature around the device -5-55 °C operation, -60-80 °C storage, -20-70 °C at Uc
Depth 93 mm
Width 56 mm
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 3000 m without derating
Mechanical robustness shocks contactor open (6 Gn for 11 ms) , shocks contactor closed (10 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , vibrations contactor open (1.5 Gn, 5...300 Hz)
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Net weight 0.52 kg
Standards IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1
Height 64 mm
Product certifications CE, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.0 cm
Package 1 Width 8.5 cm
Package 1 Length 10.0 cm
Package 1 Weight 545.0 g
Unit Type of Package 2 2
Number of Units in Package 2 22
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 12.251 kg
Unit Type of Package 3 3
Number of Units in Package 3 352
Package 3 Height 75.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 204.016 kg

Related products

Picture of Auxiliary contact block,Easy TeSys Control,2NC,for LC1E/CAE

Auxiliary contact block,Easy TeSys Control,2NC,for LC1E/CAE

LAEN02
$8.20 INC GST
View Detail
Picture of Auxiliary contact block,Easy TeSys Control,1NO+1NC,for LC1E/CAE

Auxiliary contact block,Easy TeSys Control,1NO+1NC,for LC1E/CAE

LAEN11
$8.20 INC GST
View Detail
Picture of Auxiliary contact block,Easy TeSys Control,2NO,for LC1E/CAE

Auxiliary contact block,Easy TeSys Control,2NO,for LC1E/CAE

LAEN20
$8.20 INC GST
View Detail
Picture of Auxiliary contact block,Easy TeSys Control,2NO+2NC,for LC1E/CAE

Auxiliary contact block,Easy TeSys Control,2NO+2NC,for LC1E/CAE

LAEN22
$11.50 INC GST
View Detail

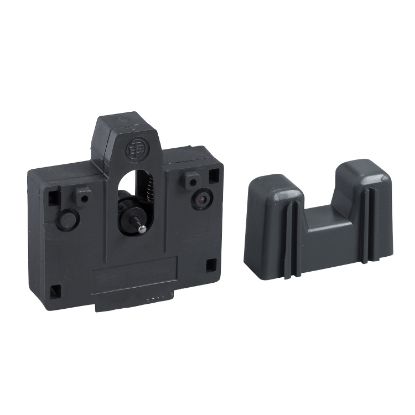

Picture of Mechanical interlock,Easy TeSys Control,for LC1E06...E65
