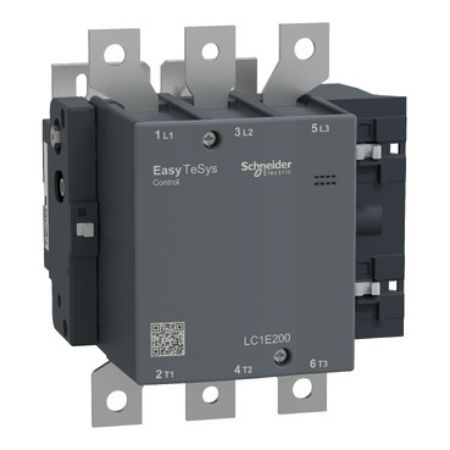

Picture of Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,200A,415V AC coil
SKU:

LC1E200N5

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,200A,415V AC coil

$1,021.02 INC GST
Available for Shipping : 23-Jul-2025
Product Selector
Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,200A,415V AC coil
  • Easy Tesys TVS Contactor provide a cost-effective solution to a simple application
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • 2 principles to build your starter solution,To build the essential solutions in an easy and simple way.
  • Easy choice for simple applications
  • Various Relay Coil Voltages: A.C
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
EasyPact TVS contactor 3 poles for motor applications up to 200A 100kW@440V. It provides a 415V 50Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 168.5mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.5 Mcycles electrical durability AC-3 and 5 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LC1E
Poles description 3P
[Ie] rated operational current 250 A (at <40 °C) at <= 440 V AC AC-1 for power circuit, 200 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-1, AC-3
Range Easy TeSys
Product or component type contactor
Contactor application motor control, resistive load
Range of product Easy TeSys Control
[Ue] rated operational voltage power circuit: <= 690 V AC 50/60 Hz
[Uc] control circuit voltage 415 V AC 50 Hz
Complementary
Heat dissipation 18-24 W for control circuit
[Icw] rated short-time withstand current 1500 A 40 °C - 10 s for power circuit
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
Motor power kW 110 kW at 660...690 V, 110 kW at 500 V, 100 kW at 440 V, 100 kW at 415 V, 90 kW at 380...400 V, 55 kW at 220...230 V AC 50/60 Hz
Overvoltage category III
Hold-in power consumption in VA 66-66 VA 60 Hz cos phi 0.3 (at 20 °C), 55-55 VA 50 Hz cos phi 0.3 (at 20 °C)
Mechanical durability 5000000 cycles
Electrical durability 200000 cycles AC-1, 500000 cycles AC-3
Tightening torque power circuit: 18 N.m, control circuit: 1.2 N.m
Maximum operating rate 1200 cyc/h 55 °C
Minimum switching voltage 17 V for control circuit
Operating time 7...15 ms on opening, 20...35 ms on closing
Connections - terminals power circuit: bars 2 - busbar cross section: 3 x 25 mm, power circuit: cable with lug - external diameter: 150 mm, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 8 kV coil not connected to the power circuit conforming to IEC 60947
Inrush power in VA 970-970 VA 60 Hz cos phi 0.3 (at 20 °C), 805-805 VA 50 Hz cos phi 0.3 (at 20 °C)
Associated fuse rating 315 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
Irms rated making capacity 2000 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 1600 A at 440 V for power circuit conforming to IEC 60947
Insulation resistance > 10 MOhm for control circuit
Pollution degree 3
Control circuit type AC at 50 Hz
Mounting support plate
Control circuit voltage limits 0.35...0.55 Uc (-5-55 °C):drop-out 50 Hz, 0.85...1.1 Uc (-5-55 °C):operational 50 Hz
[Ith] conventional free air thermal current 250 A (at 55 °C)
Average impedance 0.33 mOhm - Ith 250 A 50 Hz for power circuit
Power dissipation per pole 21 W AC-1, 13 W AC-3
Minimum switching current 5 mA for control circuit
Non-overlap time 1.5 ms on de-energisation guaranteed between NC and NO contact, 1.5 ms on energisation guaranteed between NC and NO contact
Environment
Permissible ambient air temperature around the device -5-55 °C operation, -60-80 °C storage, -20-70 °C at Uc
Depth 181 mm
Width 168.5 mm
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 3000 m without derating
Mechanical robustness shocks contactor closed (7 Gn for 11 ms) , shocks contactor open (6 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , vibrations contactor open (1.5 Gn, 5...300 Hz)
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Net weight 4.6 kg
Standards IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1
Height 174 mm
Product certifications CE, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.5 cm
Package 1 Width 20.5 cm
Package 1 Length 25.5 cm
Package 1 Weight 5.164 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 73.5 cm
Package 2 Width 60.0 cm
Package 2 Length 80.0 cm
Package 2 Weight 74.968 kg

Related products

Picture of Auxiliary contact block,Easy TeSys Control,2NC,for LC1E/CAE

Auxiliary contact block,Easy TeSys Control,2NC,for LC1E/CAE

LAEN02
$8.20 INC GST
View Detail
Picture of Auxiliary contact block,Easy TeSys Control,1NO+1NC,for LC1E/CAE

Auxiliary contact block,Easy TeSys Control,1NO+1NC,for LC1E/CAE

LAEN11
$8.20 INC GST
View Detail
Picture of Auxiliary contact block,Easy TeSys Control,2NO,for LC1E/CAE

Auxiliary contact block,Easy TeSys Control,2NO,for LC1E/CAE

LAEN20
$8.20 INC GST
View Detail
Picture of Auxiliary contact block,Easy TeSys Control,2NO+2NC,for LC1E/CAE

Auxiliary contact block,Easy TeSys Control,2NO+2NC,for LC1E/CAE

LAEN22
$11.50 INC GST
View Detail
Picture of Mechanical interlock,Easy TeSys Control,for LC1E200-E250

Mechanical interlock,Easy TeSys Control,for LC1E200-E250

LAEM6
