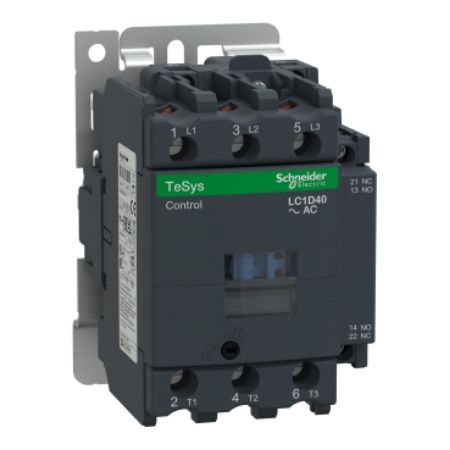

Picture of Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,220V AC 50/60Hz coil, screw clamp terminals
SKU:

LC1D40M7

Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,220V AC 50/60Hz coil, screw clamp terminals

Old price: $721.60 INC GST
$454.61 INC GST
Availability: Please contact our sales team on 1300 724 622.
Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,220V AC 50/60Hz coil, screw clamp terminals
  • Designed to meet needs of demanding applications
  • New modern look & feel of all machines
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Compatible for all the voltages on the market
  • Multiple international certifications
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
TeSys Deca contactor, 3 poles (3NO),for motor control applications 40A/690V,AC-3 30kW@690V. and for non-inductive load control applications up to 60A@60℃ in category AC-1. It provides a 220V 50/60Hz AC coil,1NO/1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-3e, AC-3, AC-2, AC-4, AC-1
[Uc] control circuit voltage 220 V AC 50/60 Hz
Device short name LC1D
Range TeSys
Range of product TeSys Deca
Poles description 3P
Product or component type contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LC1D
Associated fuse rating 80 A gG at <= 690 V coordination type 2 for power circuit, 80 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for control circuit conforming to IEC 60947-5-1
Control circuit type AC at 50/60 Hz
Protective cover with
[Ui] rated insulation voltage power circuit: 690 V conforming to IEC 60947-1, control circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, control circuit: 600 V UL certified, control circuit: 600 V CSA certified
Overvoltage category III
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology without built-in bidirectional peak limiting diode suppressor
Inrush power in VA 160-160 VA cos phi 0.75 (at 20 °C), 140-140 VA cos phi 0.75 (at 20 °C)
Auxiliary contact composition 1 NO + 1 NC
Power dissipation per pole 2.4 W AC-3e, 2.4 W AC-3, 5.4 W AC-1
Minimum switching current 5 mA for control circuit
Non-overlap time 1.5 ms on energisation between NC and NO contacts, 1.5 ms on de-energisation between NC and NO contacts
Heat dissipation 4-5 W at 50/60 Hz for control circuit
Mechanical durability 6000000 cycles
Tightening torque control circuit: 1.7 N.m - on lugs - with screwdriver pozidriv No 2, power circuit: 5 N.m - on screw terminal - with screwdriver flat Ø 6 to Ø 8 mm, control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Minimum switching voltage 17 V for control circuit
Operating time 12...26 ms closing, 4...19 ms opening
Irms rated making capacity 140 A AC for control circuit conforming to IEC 60947-5-1, 800 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 800 A at 440 V for power circuit conforming to IEC 60947
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current 60 A (at 60 °C) for power circuit, 10 A (at 60 °C) for control circuit
Motor power hp 30 hp at 575/600 V AC 60 Hz for 3 phases motors, 30 hp at 460/480 V AC 60 Hz for 3 phases motors, 10 hp at 230/240 V AC 60 Hz for 3 phases motors, 10 hp at 200/208 V AC 60 Hz for 3 phases motors, 5 hp at 230/240 V AC 60 Hz for 1 phase motors, 3 hp at 115 V AC 60 Hz for 1 phase motors
Motor power kW 11 kW at 220...230 V AC 50 Hz (AC-3e), 22 kW at 440 V AC 50 Hz (AC-3e), 22 kW at 415 V AC 50 Hz (AC-3e), 22 kW at 1000 V AC 50 Hz (AC-3e), 30 kW at 660...690 V AC 50 Hz (AC-3e), 22 kW at 500 V AC 50 Hz (AC-3e), 18.5 kW at 380...400 V AC 50 Hz (AC-3e), 9 kW at 400 V AC 50 Hz (AC-4), 11 kW at 220...230 V AC 50 Hz (AC-3), 22 kW at 440 V AC 50 Hz (AC-3), 22 kW at 415 V AC 50 Hz (AC-3), 22 kW at 1000 V AC 50 Hz (AC-3), 30 kW at 660...690 V AC 50 Hz (AC-3), 22 kW at 500 V AC 50 Hz (AC-3), 18.5 kW at 380...400 V AC 50 Hz (AC-3)
Hold-in power consumption in VA 15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals power circuit: screw terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end, power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end, power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: rigid, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: rigid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Insulation resistance > 10 MOhm for control circuit
Mounting support rail, plate
Terminals description ISO n°1 (A1-A2)CO, (13-14)NO, (21-22)NC
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor opened (2 Gn, 5...300 Hz) , shocks contactor closed (15 Gn for 11 ms) , shocks contactor opened (10 Gn for 11 ms)
Climatic withstand conforming to IACS E10 exposure to damp heat
Standards UL 508, IEC 60947-4-1, EN 60947-5-1, CSA C22.2 No 14, IEC 60947-5-1, EN 60947-4-1
Height 127 mm
Operating altitude 0...3000 m
Net weight 1.4 kg
Product certifications UKCA, GOST, UL, CSA, RINA, CCC, BV, GL, DNV, LROS (Lloyds register of shipping)
IP degree of protection IP2X conforming to VDE 0106, IP2X conforming to IEC 60529
Depth 119 mm
Width 75 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 13.2 cm
Package 1 Length 14.0 cm
Package 1 Weight 1.45 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.555 kg
