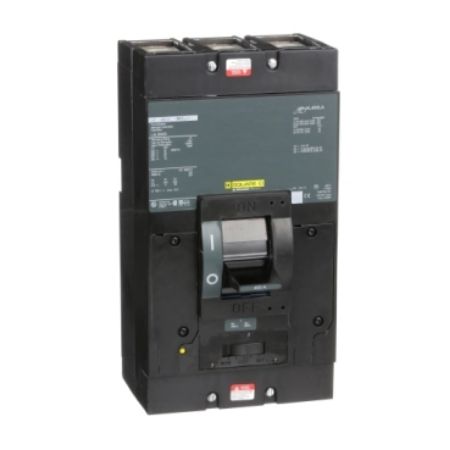

Picture of Circuit breaker, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic
SKU:

LAL36400

Circuit breaker, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

Old price: $28,488.90 INC GST
$25,070.23 INC GST
Available for Shipping : 03-Sep-2025
Circuit breaker, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic
  • LA molded case 400A, 600VAC 2 pole unit mount circuit breaker
  • Economic solution for manual circuit open or automatic current interruption
  • Contains thermal sensing for overload and magnetic for short circuit
  • Flexible platform for various types of mounting and terminations
  • Push-to-Trip trips breaker without exposure to live parts
Be the first to review this product
Manufacturer: Square D
Instruction sheet
Catalog
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
The PowerPact L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. L-frame circuit breakers are available with Micrologic electronic trip units only. The new generation PowerPact with Micrologic circuit breakers set the standard with direct access to energy management. Integrated metering enhances their protective functions. For the first time, Schneider Electric™ users can monitor energy from 15 to 3000A, offering new performance in a remarkably compact device. Electronic trip units provide highly accurate protection with wide setting ranges and can integrate measurement, metering and communication functions. They can be combined with the front display module (FDM121) to provide functions similar to a power meter. This 3-pole circuit breaker has a 400A rated current. This breaker has a breaking capacity of 10 kA@250VDC operation voltage. This breaker has a thermal-magnetic trip technology. The dimensions are 11 in (H), 6 in (W), 5.84 in (D).

Products specifications

Attribute name Attribute value
Main
Product or component type circuit breaker
Trip unit technology thermal-magnetic
Complementary
Depth 5.84 in
Width 6 in
[In] rated current 400 A
Poles description 3P
Mounting mode unit mount
Circuit breaker application HACR rated
Magnetic hold current 2000 A
Electrical connection lugs, line, lugs, load
Magnetic tripping current 4000-4000 A
Tightening torque 13-13 N.m for 42-127 mm² (AWG 1...250 kcmil), 13-13 N.m for 42-304 mm² (AWG 1...600 kcmil)
Height 11 in
Terminal identifier AL400LA
Environment
Product certifications UL listed, CSA, IEC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 23.495 cm
Package 1 Width 29.210 cm
Package 1 Length 44.450 cm
Package 1 Weight 7.462 kg
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 101.600 cm
Package 2 Width 101.600 cm
Package 2 Length 121.920 cm
Package 2 Weight 305.721 kg
