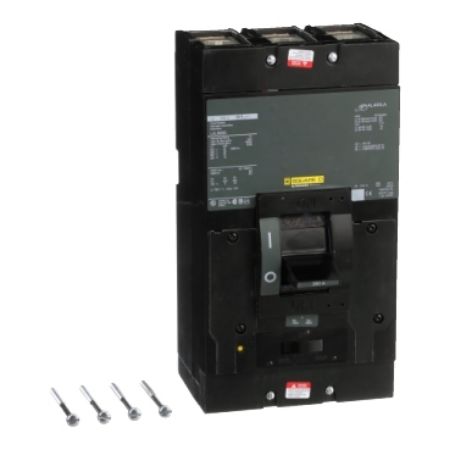

Picture of Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic
SKU:

LAL36350

Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

Old price: $28,488.90 INC GST
$25,070.23 INC GST
Available for Shipping : 03-Sep-2025
Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic
  • LA molded case 350A, 600VAC 2 pole unit mount circuit breaker
  • Economic solution for manual circuit open or automatic current interruption
  • Contains thermal sensing for overload and magnetic for short circuit
  • Flexible platform for various types of mounting and terminations
  • Push-to-Trip trips breaker without exposure to live parts
Be the first to review this product
Manufacturer: Square D
Environmental Disclosure
Instruction sheet
User guide
Product Page Link
Product Data Sheet
The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. L-frame circuit breakers are available with MICROLOGIC electronic trip units only. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Circuit breakers rated for 100% operation are available but require specially-designed enclosures and 194°F (90°C) rated wire. Devices with the MICROLOGIC electronic trip unit provide adjustable protection settings for greater system flexibility In addition to electronic protection, MICROLOGIC trip units allow users to monitor both energy and power. PowerPact H-, J-, and L-frame circuit breakers offer high performance and a wide range of interchangeable trip units to protect most applications. Electronic trip units provide highly accurate protection with wide setting ranges and can integrate measurement, metering and communication functions. This PowerPact circuit breaker, is a 350A, and is a 3-pole,with a breaking capacity of 22kA@600VAC rated operatiuonal voltage. With a magnetic hold current of 1750A and a magnetic tripping current of 3500A. This breaker has a thermal-magnetic trip unit technology. This unit mount breaker copmplies to UL, CSA standards. Dinemsions for this product are 11 in (H), 6 in (W), 5.84 in (D), and an ambient temperature rating of 40 °C.

Products specifications

Attribute name Attribute value
Main
Product or component type circuit breaker
Trip unit technology thermal-magnetic
Complementary
Depth 5.84 in
Width 6 in
[In] rated current 350 A
Poles description 3P
Mounting mode unit mount
Circuit breaker application HACR rated
Magnetic hold current 1750 A
Electrical connection lugs, line, lugs, load
Magnetic tripping current 3500-3500 A
Tightening torque 13-13 N.m for 42-127 mm² (AWG 1...250 kcmil), 13-13 N.m for 42-304 mm² (AWG 1...600 kcmil)
Height 11 in
Terminal identifier AL400LA
Environment
Product certifications CSA, IEC, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.860 cm
Package 1 Width 29.464 cm
Package 1 Length 44.196 cm
Package 1 Weight 7.405 kg
