SKU:

LADR0

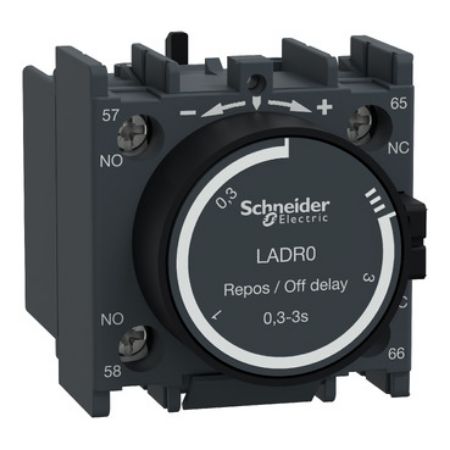

TeSys; TeSys Deca, Time delay auxiliary contact block, 1NO + 1NC, off delay 0.3-3s, front, screw clamp terminals

Old price: $558.80 INC GST

Price: $352.04 INC GST

Qty:

Available for Shipping : 24-Jul-2025

TeSys; TeSys Deca, Time delay auxiliary contact block, 1NO + 1NC, off delay 0.3-3s, front, screw clamp terminals

New modern look & feel of all machines

Designed to meet the requirements of industrial and HVAC applications

Easier to install and operate with multi-standard screws

With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries

Digital customer experience for technical documents

Maintenance guide via EcoStruxureTM Facility Expect

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

CAD

Catalog

Environmental Disclosure

Product Page Link

Product Data Sheet

TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 0.3-3s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name	Attribute value
Main
Auxiliary contacts operation	time delay
Time delay range	0.3...3 s
[Ie] rated operational current	0.1 A at 600 V DC-13, 0.55 A at 125 V DC-13, 1.04 A at 690 V AC-15, 6 A at 120 V AC-15
[Ui] rated insulation voltage	600 V conforming to CSA C22.2 No 60947-5-1, 600 V conforming to UL 60947-5-1, 690 V conforming to IEC 60947-5-1
Pole contact composition	1 NO + 1 NC
Mounting location	front
Range	TeSys Deca, TeSys
Product name	TeSys Deca
Product or component type	time delay auxiliary contact block
Range compatibility	TeSys F CR1F, TeSys F LC1F, TeSys Deca LC1D, TeSys Deca CAD
[Ue] rated operational voltage	690 V AC 25...400 Hz
Timer type	off delay
Standards	EN 50012, GB/T 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
[Ith] conventional free air thermal current	10 A (at 60 °C)
Range of product	TeSys Deca
Product certifications	UKCA, EAC, CCC, CSA, UL, IECEE CB Scheme
Complementary
Depth	61 mm
Width	44 mm
Colour	dark grey
Mechanical durability	5 Mcycles
Tightening torque	1.7 N.m - with screwdriver pozidriv No 2, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver flat Ø 6 mm
Minimum switching voltage	17 V
Connections - terminals	screw clamp terminals, screw clamp terminals 2 cable(s) 1-2.5 mm²rigid, screw clamp terminals 1 cable(s) 1-2.5 mm²rigid, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible with cable end
Irms rated making capacity	250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Insulation resistance	> 10 MOhm
Protection type	gG fuse 10 A
Height	48 mm
Minimum switching current	5 mA
Permissible short-time rating	140 A 60 °C 100 ms, 120 A 60 °C 500 ms, 100 A 60 °C 1 s
Non-overlap time	1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Shielding continuity terminal	without
Environment
Operating altitude	3000 m
Protective treatment	TH conforming to IEC 60068
Environmental characteristic	normal environment
Ambient air temperature for storage	-60-80 °C
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-40-70 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.200 cm
Package 1 Width	6.500 cm
Package 1 Length	5.000 cm
Package 1 Weight	75.000 g
Unit Type of Package 2	2
Number of Units in Package 2	140
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	11.070 kg
Unit Type of Package 3	3
Number of Units in Package 3	1120
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	99.324 kg
