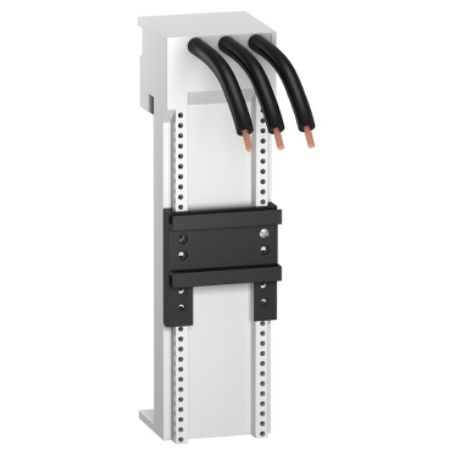

Picture of PLATE GV3 63A 54X200 IEC/UL FOR 60 BUSBAR INTERAXIS
SKU:

LA9ZA32624

PLATE GV3 63A 54X200 IEC/UL FOR 60 BUSBAR INTERAXIS

Old price: $340.45 INC GST
$214.48 INC GST
Available for Shipping : 19-Aug-2025
PLATE GV3 63A 54X200 IEC/UL FOR 60 BUSBAR INTERAXIS
  • Done with grey surface treatment
  • It is compatible with 3 Poles TeSys
  • Devices can be powered anywhere within the panel
  • A straightforward layout that allows quick and simplified extensions and upgrades
  • Connection everywhere without drilling
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
Linergy busbar systems adaptors for TeSys GV3P. It applied to 10 mm² cable cross section and 1x3 Poles. The rated insulation voltage is 690V. The permissible current is 63A. It has grey surface treatment. It is compatible with GV3P for Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, TeSys-GV3. Sold in lots of 4 units. IP20 conforming to IEC 60529. It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Device short name LA9Z
Quantity per set set of 4
Number of ways 1 way
Range Linergy
Product name BZ
Product or component type adaptors for busbar systems
Range of product TeSys
Complementary
Product compatibility GV3P
Depth 63 mm
Range compatibility Spacial, TeSys GV3, Prisma Pack, Prisma PH, Prisma P, Prisma G
Width 54 mm
Colour grey
Poles description 3P
[Ui] rated insulation voltage 690 V
Permissible current 63 A
Cable cross section 10-10 mm² - AWG 8
Height 200 mm
Busbar pitch 60 mm
Environment
IP degree of protection IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.900 cm
Package 1 Width 10.000 cm
Package 1 Length 10.000 cm
Package 1 Weight 324.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 12.400 cm
Package 2 Width 18.000 cm
Package 2 Length 21.800 cm
Package 2 Weight 1.398 kg
Unit Type of Package 3 3
Number of Units in Package 3 36
Package 3 Height 30.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 13.337 kg
