SKU:

LA9ZA32428

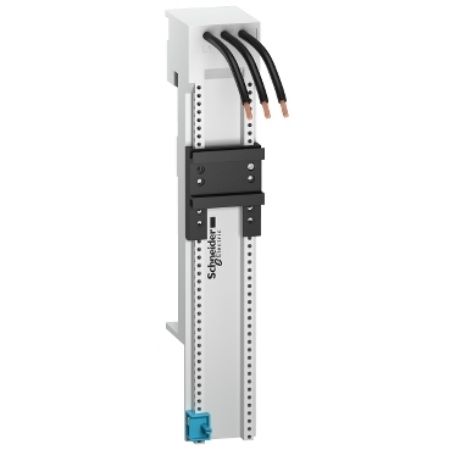

PLATE LUB 32A 45X260 IEC/UL FOR 60 BUSBAR INTERAXIS

Old price: $144.10 INC GST

Price: $90.78 INC GST

Qty:

Available for Shipping : 24-Jul-2025

PLATE LUB 32A 45X260 IEC/UL FOR 60 BUSBAR INTERAXIS

A straightforward layout that allows quick and simplified extensions and upgrades

Manufacturer: Schneider Electric

Catalog

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	LA9Z
Quantity per set	set of 4
Number of ways	2 ways
Range	Linergy
Product name	BZ
Product or component type	adaptors for busbar systems
Range of product	TeSys
Complementary
Product compatibility	LUB12, LUB32
Depth	63 mm
Range compatibility	Spacial, TeSys U, Prisma Pack, Prisma PH, Prisma P, Prisma G
Width	45 mm
Colour	grey
Poles description	3P
[Ui] rated insulation voltage	690 V
Permissible current	32 A
Cable cross section	6-6 mm² - AWG 10
Height	260 mm
Busbar pitch	60 mm
Environment
IP degree of protection	IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.200 cm
Package 1 Width	15.500 cm
Package 1 Length	26.200 cm
Package 1 Weight	273.000 g
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	11.200 cm
Package 2 Width	16.500 cm
Package 2 Length	30.000 cm
Package 2 Weight	1.208 kg
Unit Type of Package 3	3
Number of Units in Package 3	8
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	2.909 kg
