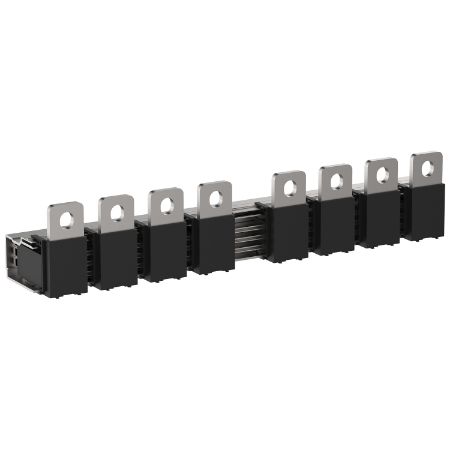

Picture of Change-over connection bar, for TeSys Giga contactor LC1G265-500, 4 pole
SKU:

LA9G4751

Change-over connection bar, for TeSys Giga contactor LC1G265-500, 4 pole

Old price: $948.20 INC GST
$597.37 INC GST
Available for Shipping : 02-Oct-2025
Change-over connection bar, for TeSys Giga contactor LC1G265-500, 4 pole
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Instruction sheet
Catalog
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
These accessories are change-over bars for TeSys Giga 265-500 contactor. It is used to 4 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Electrical circuit type changeover
Quantity per set set of 1
Range TeSys
Product or component type set of connections
Accessory / separate part category connection accessory
Complementary
Product compatibility LC1G265...500
Depth 388 mm
Width 74 mm
Poles description 4P
Net weight 1.0 kg
Range compatibility TeSys Giga
Height 65 mm
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for storage -60-80 °C
Product certifications RMRoS, RINA, RCM, LROS (Lloyds register of shipping), KC, EAC, DNV-GL, CE, cUL, CCS, CCC, CB, BV, ABS
Standards GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Ambient air temperature for operation -40-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.5 cm
Package 1 Width 16.0 cm
Package 1 Length 46.0 cm
Package 1 Weight 2.766 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 12.106 kg

Related products

Picture of High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 385A, advanced version, 24…48V wide band AC/DC coil

High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 385A, advanced version, 24…48V wide band AC/DC coil

LC1G2654BEEA
$3,634.78 INC GST $5,769.50 INC GST
View Detail
Picture of High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 440A, advanced version, 24…48V wide band AC/DC coil

High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 440A, advanced version, 24…48V wide band AC/DC coil

LC1G3304BEEA
$3,977.82 INC GST $6,314.00 INC GST
View Detail

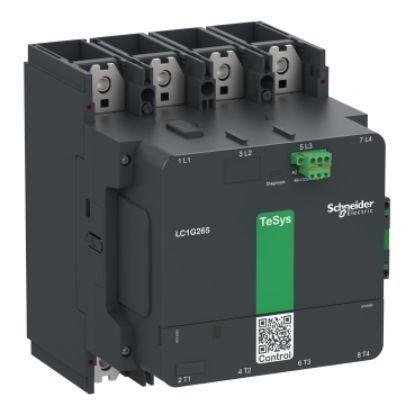

Picture of High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 550A, standard version, 48…130V wide band AC/DC coil
