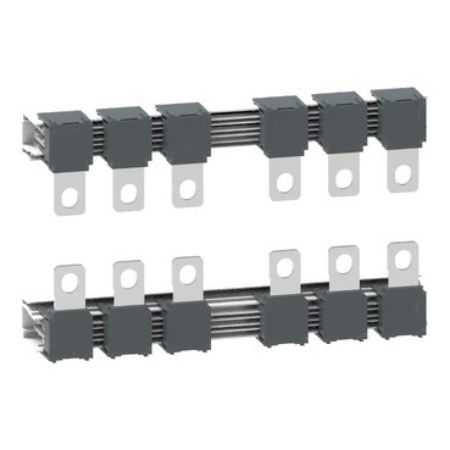

Picture of Reverser connection bar,TeSys Giga contactor,for LC1G630-800,3 pole
SKU:

LA9G3762

Reverser connection bar,TeSys Giga contactor,for LC1G630-800,3 pole

Old price: $2,389.20 INC GST
$1,505.20 INC GST
Available for Shipping : 02-Oct-2025
Reverser connection bar,TeSys Giga contactor,for LC1G630-800,3 pole
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Instruction sheet
Catalog
Environmental Disclosure
User guide
CAD
Product Page Link
Product Data Sheet
These accessories are reverser bars for TeSys Giga 630-800 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 800 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Electrical circuit type reversing
Quantity per set set of 1
Range TeSys
Product or component type set of connections
Accessory / separate part category connection accessory
Complementary
Product compatibility LC1G620, LC1G630...800
Depth 88 mm
Width 176 mm
Poles description 3P
Net weight 10.41 kg
Range compatibility TeSys Giga
Height 440.5 mm
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for storage -60-80 °C
Product certifications RMRoS, RINA, RCM, LROS (Lloyds register of shipping), KC, EAC, DNV-GL, CE, cUL, CCS, CCC, CB, BV, ABS
Standards GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Ambient air temperature for operation -40-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.000 cm
Package 1 Width 40.000 cm
Package 1 Length 60.000 cm
Package 1 Weight 12.726 kg

Related products

Picture of High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 630A, advanced version, 48…130V wide band AC/DC coil

High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 630A, advanced version, 48…130V wide band AC/DC coil

LC1G630EHEA
$7,089.39 INC GST $11,253.00 INC GST
View Detail
Picture of High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <lt/>=440V 630A, standard version, 48…130V wide band AC/DC coil

High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <lt/>=440V 630A, standard version, 48…130V wide band AC/DC coil

LC1G630EHEN
$6,164.24 INC GST $9,784.50 INC GST
View Detail

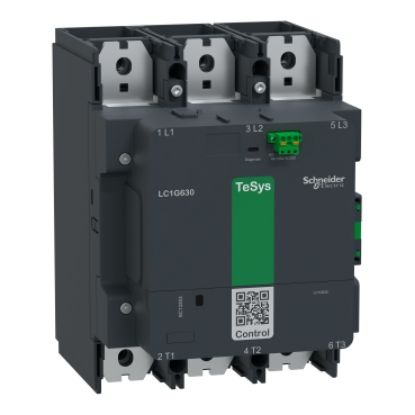

Picture of High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 630A, standard version, 100…250V wide band AC/DC coil
