SKU:

LA4KC2B

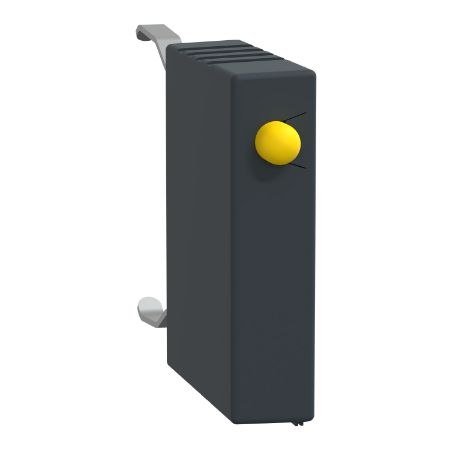

TeSys K, Suppressor module, flywheel diode, 12...24V

Old price: $28.16 INC GST

Price: $17.74 INC GST

Qty:

Available for Shipping : 21-Aug-2025

TeSys K, Suppressor module, flywheel diode, 12...24V

Add on design to eensure product flexibility

New Product signature to align with TeSys K contactors

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Environmental Disclosure

Declaration of conformity

Product Page Link

Product Data Sheet

TeSys K suppressor module, for TeSys K contactors. To be used with 12-24V DC control circuits, it provides a flywheel diode protection ensuring no transient overvoltage. Clip-on mounting on front of contactor (no tools required, polarised component), it incorporates a power-on LED indicator. Sold in lots of 5 units. It conforms to RoHS/REACh regulation.

Products specifications

Attribute name	Attribute value
Main
Device short name	LA4K
Product compatibility	LP1, LC1
Range	TeSys
Product or component type	suppressor module
Range of product	TeSys K
Complementary
Suppressor technology	flywheel diode
Depth	22 mm
Width	6 mm
Quantity per set	set of 5
Compatibility code	LA4K
Local signalling	LED
Mounting mode	clip-on
Maximum peak voltage	2 Uc
Mounting location	front side
Net weight	0.01 kg
Height	26 mm
[Uc] control circuit voltage	12...24 V DC
Environment
Protective treatment	TC conforming to DIN 50016, TC conforming to IEC 60068
Ambient air temperature for storage	-50-80 °C
IP degree of protection	IP2X conforming to IEC 60529
Standards	EN/IEC 60947-5-1, CSA C22.2 No 60947-5-1, UL 60947-5-1
Ambient air temperature for operation	-25-50 °C
Product certifications	UKCA, CE, CSA, UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.200 cm
Package 1 Width	5.200 cm
Package 1 Length	2.800 cm
Package 1 Weight	4.000 g
Unit Type of Package 2	2
Number of Units in Package 2	5
Package 2 Height	4.200 cm
Package 2 Width	2.800 cm
Package 2 Length	5.200 cm
Package 2 Weight	20.000 g
Unit Type of Package 3	3
Number of Units in Package 3	420
Package 3 Height	15.000 cm
Package 3 Width	15.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	1.880 kg
Unit Type of Package 4	4
Number of Units in Package 4	13440
Package 4 Height	75.000 cm
Package 4 Width	60.000 cm
Package 4 Length	80.000 cm
Package 4 Weight	68.160 kg
