SKU:

LA4KC1B

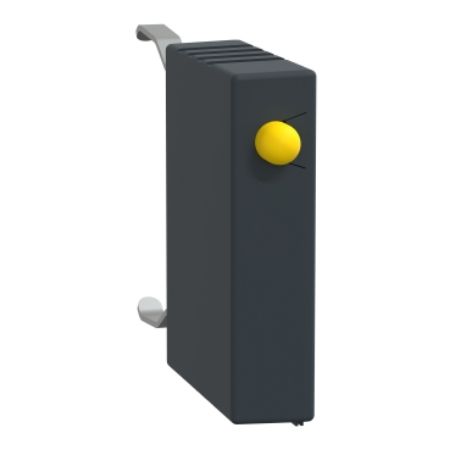

TeSys; TeSys K, Suppressor module, bidirectional peak limiting diode, 12...24 VTeSys; TeSys K

Old price: $60.94 INC GST

Price: $38.39 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

TeSys; TeSys K, Suppressor module, bidirectional peak limiting diode, 12...24 VTeSys; TeSys K

Meet the need for coil protection for TeSys K contactor

Suppressor module

Front side mounting by click-on

Replacable

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Environmental Disclosure

Catalog

Declaration of conformity

Product Page Link

Product Data Sheet

TeSys K suppressor module, for contactors LP.K, CA3K, CA4K. To be used with 12-24V DC control circuits, it provides a flywheel diode protection ensuring no transient overvoltage. Clip-on mounting on front of contactor (no tools required, polarised component), it incorporates a power-on LED indicator. Sold in lots of 5 units. It conforms to RoHS/REACh regulation.

Products specifications

Attribute name	Attribute value
Main
Device short name	LA4K
Product compatibility	CA3K, LP4K, LP1K
Range	TeSys
Product or component type	suppressor module
Range of product	TeSys K
Complementary
Suppressor technology	bidirectional peak limiting diode
Depth	22 mm
Width	6 mm
Quantity per set	set of 5
Compatibility code	LA4K
Local signalling	LED
Mounting mode	clip-on
Maximum peak voltage	2 Uc
Mounting location	front side
Net weight	0.01 kg
Height	26 mm
[Uc] control circuit voltage	12...24 V DC
Environment
Protective treatment	TC conforming to DIN 50016, TC conforming to IEC 60068
Ambient air temperature for storage	-50-80 °C
IP degree of protection	IP2X conforming to IEC 60529
Standards	EN/IEC 60947-5-1, CSA C22.2 No 60947-5-1, UL 60947-5-1
Ambient air temperature for operation	-25-50 °C
Product certifications	UKCA, CE, CSA, UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.800 cm
Package 1 Width	2.800 cm
Package 1 Length	4.200 cm
Package 1 Weight	4.000 g
Unit Type of Package 2	2
Number of Units in Package 2	5
Package 2 Height	2.800 cm
Package 2 Width	5.200 cm
Package 2 Length	4.300 cm
Package 2 Weight	28.000 g
Unit Type of Package 3	3
Number of Units in Package 3	420
Package 3 Height	15.000 cm
Package 3 Width	15.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	2.657 kg
