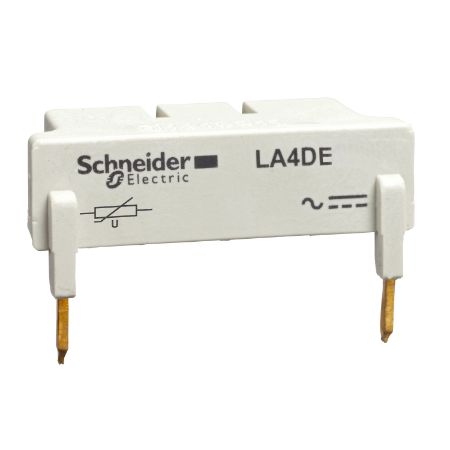

Picture of TeSys; TeSys Deca, suppressor module, varistor, 24...48 V AC
SKU:

LA4DE2E

TeSys; TeSys Deca, suppressor module, varistor, 24...48 V AC

Old price: $96.91 INC GST
$61.05 INC GST
Available for Shipping : 14-Aug-2025
TeSys; TeSys Deca, suppressor module, varistor, 24...48 V AC
  • Meet the need for coil protection for TeSys Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys D suppressor module, for LC1D80-D150 (3P), LC1D80-D115 (4P) contactors. To be used with 24-48V AC control circuit voltage, it provides varistor protection limiting the transient voltage to 2 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LA4D
Product compatibility 3P LC1D80...D115, 4P LC1D80...D115
Range TeSys
Product or component type suppressor module
Range of product TeSys Deca
Complementary
Suppressor technology varistor (peak limiting)
Compatibility code LA4D
Mounting mode by screws
Maximum peak voltage 2 Uc
Mounting location top
Net weight 0.018 kg
[Uc] control circuit voltage 24...48 V AC
Environment
Ambient air temperature for storage -40-80 °C
IP degree of protection IP2X conforming to IEC 60529
Standards GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, EN 60947-5-1, IEC 60947-5-1
Ambient air temperature for operation -25-55 °C
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5 cm
Package 1 Width 4.1 cm
Package 1 Length 2.7 cm
Package 1 Weight 14 g
Unit Type of Package 2 2
Number of Units in Package 2 78
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 1.294 kg

Related products

Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V AC 50/60Hz coil, lugs/bars terminals

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V AC 50/60Hz coil, lugs/bars terminals

LC1D1156B7
$1,280.66 INC GST $2,032.80 INC GST
View Detail

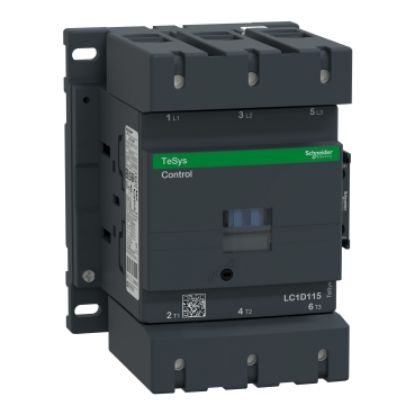

Picture of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V AC 50/60Hz coil, screw clamp terminals

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V AC 50/60Hz coil, screw clamp terminals

LC1D115B7
$769.23 INC GST $1,221.00 INC GST
View Detail
Picture of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 48V AC 50/60Hz coil, screw clamp terminals

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 48V AC 50/60Hz coil, screw clamp terminals

LC1D115E7
$814.97 INC GST $1,293.60 INC GST
View Detail

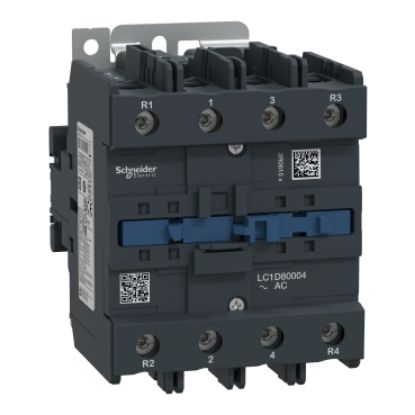

Picture of Contactor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 24V AC 50/60Hz coil, screw clamp terminal

Contactor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 24V AC 50/60Hz coil, screw clamp terminal

LC1D80004B7
$1,319.47 INC GST $2,094.40 INC GST
View Detail
Picture of Contactor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 48V AC 50/60Hz coil, screw clamp terminal

Contactor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 48V AC 50/60Hz coil, screw clamp terminal

LC1D80004E7
$920.30 INC GST $1,460.80 INC GST
View Detail

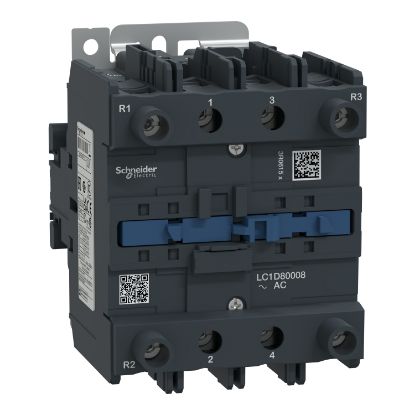

Picture of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 125A, 42V AC 50/60Hz coil, screw clamp terminal

Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 125A, 42V AC 50/60Hz coil, screw clamp terminal

LC1D80008D7
$920.30 INC GST $1,460.80 INC GST
View Detail
Picture of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 125A, 48V AC 50/60Hz coil, screw clamp terminal

Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 125A, 48V AC 50/60Hz coil, screw clamp terminal

LC1D80008E7
$1,388.77 INC GST $2,204.40 INC GST
View Detail

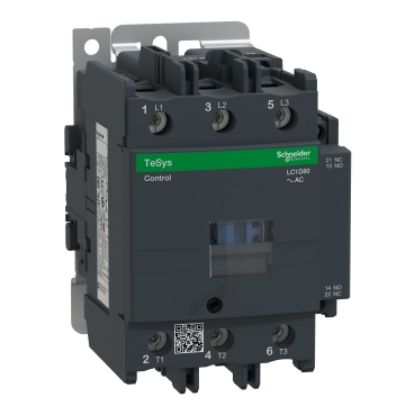

Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, 440V, 80A, 24V AC 50/60Hz coil
