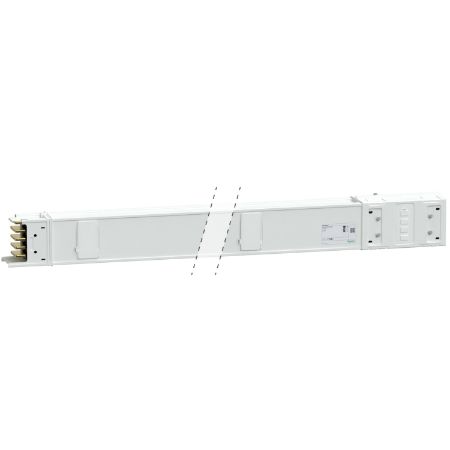

Horizontal distribution length, Canalis KSA630, aluminium, 630A, fixed length 3m, 10 outlets, 3L+N+PE, white RAL9001

$2,750.88 INC GST
Available for Shipping : 04-Dec-2025
Horizontal distribution length, Canalis KSA630, aluminium, 630A, fixed length 3m, 10 outlets, 3L+N+PE, white RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Manufacturer: Schneider Electric
Canalis busbar trunking for KSA. It's applied to medium power distribution with lubricated sliding contact. The operational voltage is from 230VAC to 690VAC 50/60Hz. The rated operational current is 630A at 35 ℃. Mounted by screws with up neutral position. Distribution length busbar whose material is aluminium and trunking polarity is 3L + N + PE. Designed with 10 tap-off outlets. It provides 0.89 µT radiated magnetic field. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Length 3-3 m
Device short name KSA
Colour white (RAL 9001)
Number of tap-off outlets 10
Busbar description horizontal distribution length
Mounting mode by screws
[Ie] rated operational current 630 A at 35 °C
Dimension type fix
Busbar trunking polarity 3L + N + PE
IP degree of protection IP55 conforming to IEC 60529
Range Canalis
Material aluminium
Product or component type busbar trunking
Product compatibility Canalis KSA busbar trunking 500-1000 A
Offer type classic
Complementary
[Ipk] rated peak withstand current 67.5 kA
Number of poles 4
[Ue] rated operational voltage 230...690 V
Width 113 mm
Mounting position horizontal
Neutral position up
Electrical connection lubricated sliding contact
Thermal stress limit 1225000 kA².s
Maximum voltage drop <0.012 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.013 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.013 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.011 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 36.4 kg
Radiated magnetic field 0.89 µT
Tap-off unit interval 500 mm
[Ui] rated insulation voltage 690 V
Linear resistance Rb1 0.41 mΩ/m 35 °C at Inc with impedance method L - PE 50/60 Hz, Rb1 0.39 mΩ/m 35 °C at Inc with impedance method L-N 50/60 Hz, Rb1 0.32 mΩ/m 35 °C at Inc with impedance method L - L 50/60 Hz, Rb0 0.3 mΩ/m 20 °C at Inc with impedance method L - PE 50/60 Hz, Rb0 0.28 mΩ/m 20 °C at Inc with impedance method L-N 50/60 Hz, Rb0 0.23 mΩ/m 20 °C at Inc with impedance method L - L 50/60 Hz, Z0 0.75 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, X0 0.55 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, R0 0.51 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, Z0 0.57 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, X0 0.35 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, R0 0.45 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, Z1 0.15 mΩ/m 35 °C at Inc L 50/60 Hz, R1 0.13 mΩ/m 35 °C at Inc L 50/60 Hz, R20 0.09 mΩ/m 20 °C L 50/60 Hz, Xb 0.24 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - PE 50/60 Hz, Xb 0.2 mΩ/m 35 °C at Inc and 50 Hz with impedance method L-N 50/60 Hz, Xb 0.14 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - L 50/60 Hz,  0.07 mΩ/m 20 °C PE 50/60 Hz, X1 0.07 mΩ/m 35 °C at Inc L 50/60 Hz
Standards IEC 61439-6, IEC 61439-1
THDI 33-100 % 400 A, 15-33 % 500 A, 0-15 % 630 A
[Uimp] rated impulse withstand voltage 8 kV
Height 146-146 mm
Network frequency 50/60 Hz
[Icw] rated short-time withstand current 32.1 kA
Environment
Ambient air temperature for operation 55-55 °C (with derating factor), 35-35 °C (without derating)
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 12.000 cm
Package 1 Length 313.750 cm
Package 1 Weight 37.400 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 50.200 cm
Package 2 Width 68.000 cm
Package 2 Length 320.000 cm
Package 2 Weight 493.700 kg
