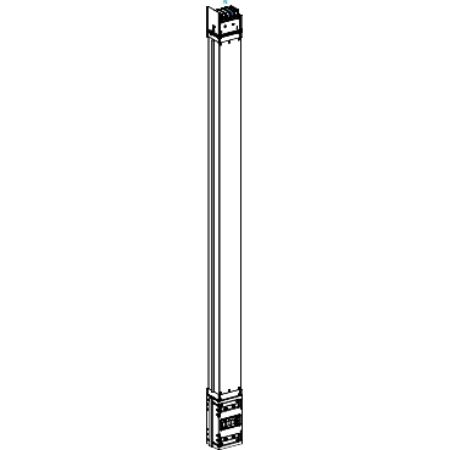

Picture of Vertical transport length, Canalis KSA630, aluminium, 500/630A, made to measure length 0.5-1.9m, 3L+N+PE, white RAL9001
SKU:

KSA630CM4A

Vertical transport length, Canalis KSA630, aluminium, 500/630A, made to measure length 0.5-1.9m, 3L+N+PE, white RAL9001

$7,748.40 INC GST
Available for Shipping : 20-Nov-2025
Vertical transport length, Canalis KSA630, aluminium, 500/630A, made to measure length 0.5-1.9m, 3L+N+PE, white RAL9001
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Length 0.5-1.9 m
Device short name KSA
Colour white (RAL 9001)
Number of tap-off outlets 0
Busbar description vertical transport length
Mounting mode by screws
[Ie] rated operational current 630 A at 35 °C
Dimension type made to measure
Busbar trunking polarity 3L + N + PE
IP degree of protection IP55 conforming to IEC 60529
Range Canalis
Material aluminium
Product or component type busbar trunking
Product compatibility Canalis KSA busbar trunking 500-1000 A
Offer type rising main
Complementary
[Ipk] rated peak withstand current 67.5 kA
Number of poles 4
[Ue] rated operational voltage 230...690 V
Width 113 mm
Mounting position vertical
Neutral position right
Electrical connection lubricated sliding contact
Thermal stress limit 1225000 kA².s
Maximum voltage drop <0.012 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.013 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.013 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.011 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 30 kg
Radiated magnetic field 0.89 µT
[Ui] rated insulation voltage 690 V
Linear resistance Rb1 0.41 mΩ/m 35 °C at Inc with impedance method L - PE 50/60 Hz, Rb1 0.39 mΩ/m 35 °C at Inc with impedance method L-N 50/60 Hz, Rb1 0.32 mΩ/m 35 °C at Inc with impedance method L - L 50/60 Hz, Rb0 0.3 mΩ/m 20 °C at Inc with impedance method L - PE 50/60 Hz, Rb0 0.28 mΩ/m 20 °C at Inc with impedance method L-N 50/60 Hz, Rb0 0.23 mΩ/m 20 °C at Inc with impedance method L - L 50/60 Hz, Z0 0.75 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, X0 0.55 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, R0 0.51 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, Z0 0.57 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, X0 0.35 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, R0 0.45 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, Z1 0.15 mΩ/m 35 °C at Inc L 50/60 Hz, R1 0.13 mΩ/m 35 °C at Inc L 50/60 Hz, R20 0.09 mΩ/m 20 °C L 50/60 Hz, Xb 0.24 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - PE 50/60 Hz, Xb 0.2 mΩ/m 35 °C at Inc and 50 Hz with impedance method L-N 50/60 Hz, Xb 0.14 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - L 50/60 Hz,  0.07 mΩ/m 20 °C PE 50/60 Hz, X1 0.07 mΩ/m 35 °C at Inc L 50/60 Hz
Standards IEC 61439-6, IEC 61439-1
THDI 33-100 % 400 A, 15-33 % 500 A, 0-15 % 630 A
[Uimp] rated impulse withstand voltage 8 kV
Height 146-146 mm
Network frequency 50/60 Hz
[Icw] rated short-time withstand current 32.1 kA
Environment
Ambient air temperature for operation 55-55 °C (with derating factor), 35-35 °C (without derating)
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.300 cm
Package 1 Width 12.200 cm
Package 1 Length 195.000 cm
Package 1 Weight 36.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 62.000 cm
Package 2 Width 72.000 cm
Package 2 Length 220.000 cm
Package 2 Weight 144.000 kg
