Picture of Horizontal distribution length, Canalis KSA500, aluminium, 500A, fixed length 3m, 6 outlets, 3L+N+PE, white RAL9001
SKU:

KSA500ED4306

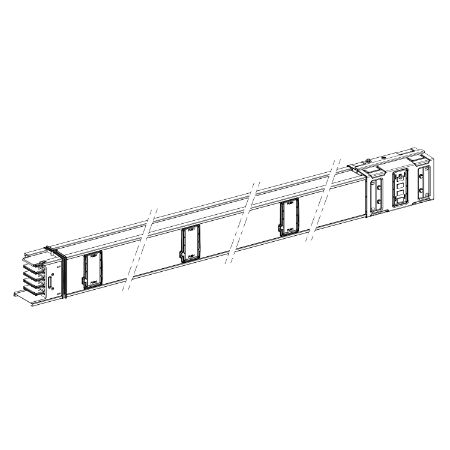

Horizontal distribution length, Canalis KSA500, aluminium, 500A, fixed length 3m, 6 outlets, 3L+N+PE, white RAL9001

$2,251.92 INC GST
Available for Shipping : 04-Dec-2025
Horizontal distribution length, Canalis KSA500, aluminium, 500A, fixed length 3m, 6 outlets, 3L+N+PE, white RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
Part of the Canalis KSA system. It consists of a 3m 500A Distribution element equipped with 6 outlets. All run components are delivered with a jointing unit.

Products specifications

Attribute name Attribute value
Main
Length 3-3 m
Device short name KSA
Colour white (RAL 9001)
Number of tap-off outlets 6
Busbar description horizontal distribution length
Mounting mode by screws
[Ie] rated operational current 500 A at 35 °C
Dimension type fix
Busbar trunking polarity 3L + N + PE
IP degree of protection IP55 conforming to IEC 60529
Range Canalis
Material aluminium
Product or component type busbar trunking
Product compatibility Canalis KSA busbar trunking 500-1000 A
Offer type classic
Complementary
[Ipk] rated peak withstand current 55 kA
Number of poles 4
[Ue] rated operational voltage 230...690 V
Width 113 mm
Mounting position horizontal
Neutral position up
Electrical connection lubricated sliding contact
Thermal stress limit 733000 kA².s
Maximum voltage drop <0.013 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.014 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.014 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.013 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 34.9 kg
Radiated magnetic field 0.66 µT
Tap-off unit interval 1000 mm
[Ui] rated insulation voltage 690 V
Linear resistance Rb1 0.43 mΩ/m 35 °C at Inc with impedance method L - PE 50/60 Hz, Rb1 0.41 mΩ/m 35 °C at Inc with impedance method L-N 50/60 Hz, Rb1 0.35 mΩ/m 35 °C at Inc with impedance method L - L 50/60 Hz, Rb0 0.31 mΩ/m 20 °C at Inc with impedance method L - PE 50/60 Hz, Rb0 0.3 mΩ/m 20 °C at Inc with impedance method L-N 50/60 Hz, Rb0 0.25 mΩ/m 20 °C at Inc with impedance method L - L 50/60 Hz, Z0 0.63 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, X0 0.48 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, R0 0.4 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, Z0 0.62 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, X0 0.36 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, R0 0.5 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, Z1 0.16 mΩ/m 35 °C at Inc L 50/60 Hz, R1 0.15 mΩ/m 35 °C at Inc L 50/60 Hz, R20 0.11 mΩ/m 20 °C L 50/60 Hz
Standards IEC 61439-6, IEC 61439-1
THDI 33-100 % 315 A, 15-33 % 400 A, 0-15 % 500 A
[Uimp] rated impulse withstand voltage 8 kV
Height 146-146 mm
Network frequency 50/60 Hz
[Icw] rated short-time withstand current 26.2 kA
Environment
Ambient air temperature for operation 55-55 °C (with derating factor), 35-35 °C (without derating)
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.1 cm
Package 1 Width 14.6 cm
Package 1 Length 317.5 cm
Package 1 Weight 34.0 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 49.5 cm
Package 2 Width 65.5 cm
Package 2 Length 315.0 cm
Package 2 Weight 450.8 kg
