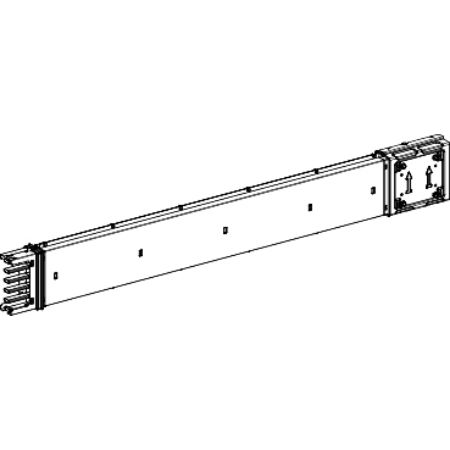

Picture of Horizontal transport length, Canalis KSA400, aluminium, 400A, made to measure length 0.5-1.9m, 3L+N+PE, white RAL9001
SKU:

KSA400ET43A

Horizontal transport length, Canalis KSA400, aluminium, 400A, made to measure length 0.5-1.9m, 3L+N+PE, white RAL9001

$3,817.44 INC GST
Available for Shipping : 20-Nov-2025
Horizontal transport length, Canalis KSA400, aluminium, 400A, made to measure length 0.5-1.9m, 3L+N+PE, white RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Length 0.5-1.9 m
Device short name KSA
Colour white (RAL 9001)
Number of tap-off outlets 0
Busbar description horizontal transport length
Mounting mode by screws
[Ie] rated operational current 400 A at 35 °C
Dimension type made to measure
Busbar trunking polarity 3L + N + PE
IP degree of protection IP55 conforming to IEC 60529
Range Canalis
Material aluminium
Product or component type busbar trunking
Product compatibility Canalis KSA busbar trunking 400-400 A
Offer type advanced
Complementary
[Ipk] rated peak withstand current 49.2 kA
Number of poles 4
[Ue] rated operational voltage 230...690 V
Width 54 mm
Mounting position horizontal
Neutral position up
Electrical connection lubricated sliding contact
Thermal stress limit 354000 kA².s
Maximum voltage drop <0.018 V with power factor = 1 at 50 Hz with 1A for 100 m long,  <0.021 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.022 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.022 V with power factor = 0.9 at 50 Hz with 1A for 100 m long
Net weight 10 kg
Radiated magnetic field 1 µT
[Ui] rated insulation voltage 690 V
Linear resistance Xb 0.39 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - PE 50/60 Hz, Xb 0.39 mΩ/m 35 °C at Inc and 50 Hz with impedance method L-N 50/60 Hz, Xb 0.28 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - L 50/60 Hz, Rb1 0.76 mΩ/m 35 °C at Inc with impedance method L - PE 50/60 Hz, Rb1 0.7 mΩ/m 35 °C at Inc with impedance method L-N 50/60 Hz, Rb1 0.57 mΩ/m 35 °C at Inc with impedance method L - L 50/60 Hz, Rb0 0.55 mΩ/m 20 °C at Inc with impedance method L - PE 50/60 Hz, Rb0 0.51 mΩ/m 20 °C at Inc with impedance method L-N 50/60 Hz, Rb0 0.41 mΩ/m 20 °C at Inc with impedance method L - L 50/60 Hz, Z0 1.11 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, X0 0.67 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, R0 0.88 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, Z0 1 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, X0 0.67 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, R0 0.74 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz,  0.19 mΩ/m 20 °C PE 50/60 Hz, Z1 0.25 mΩ/m 35 °C at Inc L 50/60 Hz, X1 0.14 mΩ/m 35 °C at Inc L 50/60 Hz, R1 0.21 mΩ/m 35 °C at Inc L 50/60 Hz, R20 0.15 mΩ/m 20 °C L 50/60 Hz
Standards IEC 61439-6, IEC 61439-1
THDI 33-100 % 250 A, 15-33 % 315 A, 0-15 % 400 A
[Uimp] rated impulse withstand voltage 8 kV
Height 146-146 mm
Network frequency 50/60 Hz
[Icw] rated short-time withstand current 18.8 kA
Environment
Ambient air temperature for operation 55-55 °C (with derating factor), 35-35 °C (without derating)
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 17.000 cm
Package 1 Length 128.000 cm
Package 1 Weight 10.855 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 60.000 cm
Package 2 Width 400.000 cm
Package 2 Length 65.000 cm
Package 2 Weight 40.565 kg
