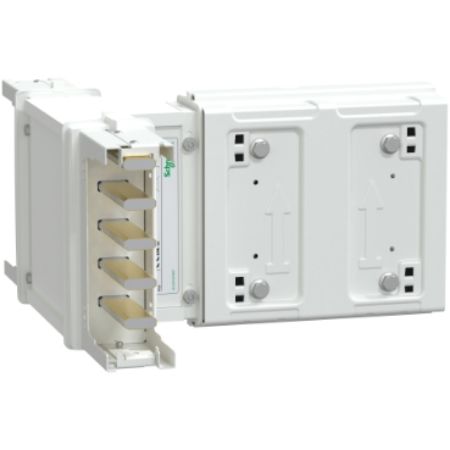

Picture of Tee, Canalis KSA250, aluminium , 100/160/250A, fixed dimensions (A/B/C 165mm), 3L+N+PE, white RAL9001
SKU:

KSA250DTC40

Tee, Canalis KSA250, aluminium , 100/160/250A, fixed dimensions (A/B/C 165mm), 3L+N+PE, white RAL9001

$1,782.00 INC GST
Available for Shipping : 10-Nov-2025
Tee, Canalis KSA250, aluminium , 100/160/250A, fixed dimensions (A/B/C 165mm), 3L+N+PE, white RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
Canalis busway power distribution tee for KS. It's applied to change direction which could edgewise to perpendicular and neutral to up. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. Designed to mount on trunking with 90 ° operating angle and standard aluminium busbar. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...690 V
Device short name KSA
Device application change direction
Colour white (RAL 9001)
[Ie] rated operational current 250 A at 35 °C
Busbar description standard
Dimension type made to measure
Busbar trunking polarity 3L + N + PE
IP degree of protection IP55 conforming to IEC 60529
Range Canalis
Material aluminium
Direction change type edgewise to perpendicular - neutral to up
Product name KS
Product or component type tee
Product compatibility Canalis KSA busbar trunking 100-250 A
Offer type advanced
Operating angle 90-90 °
Range of product Canalis
Network frequency 50/60 Hz
Complementary
Width 54 mm
Mounting position any position
Electrical connection lubricated sliding contact
Mounting mode by screws
Mounting location on trunking
Net weight 4.3 kg
Length 165-165 mm for side C, 165-165 mm for side B, 165-165 mm for side A
Standards IEC 61439-6, IEC 61439-1
Height 146-146 mm
Environment
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 24.8 cm
Package 1 Width 21.6 cm
Package 1 Length 44.0 cm
Package 1 Weight 4.782 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 40.0 cm
Package 2 Width 60.0 cm
Package 2 Length 64.0 cm
Package 2 Weight 35.089 kg
