SKU:

KSA250DMCK43F

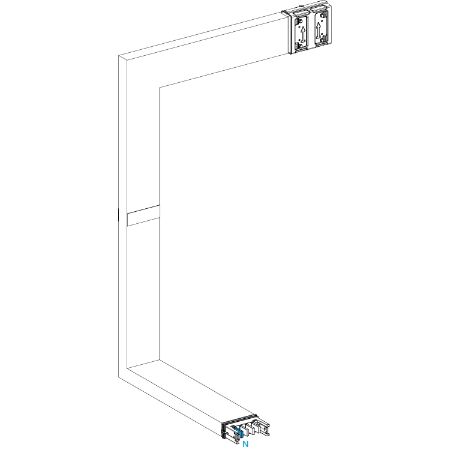

Multiple, Canalis KSA250, Alu, 100/160/250A, all sides made to measure, 1 fire barrier, downward then turns left,RAL9001

$2,610.96 INC GST

Qty:

Available for Shipping : 20-Nov-2025

Multiple, Canalis KSA250, Alu, 100/160/250A, all sides made to measure, 1 fire barrier, downward then turns left,RAL9001

Manufacturer: Schneider Electric

Environmental Disclosure

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
[Ue] rated operational voltage	230...690 V
Device short name	KSA
Device application	change direction
Colour	white (RAL 9001)
Operating angle	90 °
[Ie] rated operational current	250 A at 35 °C
Busbar description	fire barrier on made to measure (only one side)
Dimension type	made to measure
Busbar trunking polarity	3L + N + PE
IP degree of protection	IP55 conforming to IEC 60529
Range	Canalis
Material	aluminium
Direction change type	direction 2 : flat to left - , direction 1 : edgewise to downward -
Product name	KS
Product or component type	multiple elbow
Product compatibility	Canalis KSA busbar trunking 100-250 A
Length	700-1200 mm for side with fire barrier, 200-750 mm for side C, 200-750 mm for side B, 250-750 mm for side A
Offer type	advanced
Range of product	Canalis
Network frequency	50/60 Hz
Complementary
Depth	146 mm
Width	54 mm
Electrical connection	lubricated sliding contact
Mounting mode	by screws
Mounting location	on trunking
Standards	IEC 61439-6, IEC 61439-1
Environment
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	77.5 cm
Package 1 Width	92.0 cm
Package 1 Length	77.9 cm
Package 1 Weight	44.0 kg
