SKU:

KSA250DLR43A

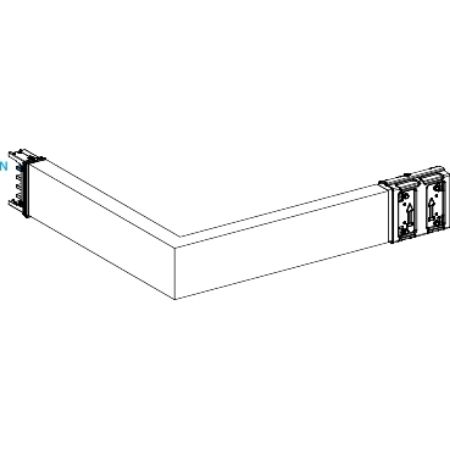

Elbow, Canalis KSA250, aluminium, 100/160/250A, sides A/B made to measure, turns right/left, 3L+N+PE, white RAL9001

$2,867.04 INC GST

Qty:

Available for Shipping : 20-Nov-2025

Elbow, Canalis KSA250, aluminium, 100/160/250A, sides A/B made to measure, turns right/left, 3L+N+PE, white RAL9001

Manufacturer: Schneider Electric

Environmental Disclosure

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
[Ue] rated operational voltage	230...690 V
Device short name	KSA
Device application	change direction
Colour	white (RAL 9001)
[Ie] rated operational current	250 A at 35 °C
Busbar description	standard on made to measure (per side)
Dimension type	made to measure
Busbar trunking polarity	3L + N + PE
IP degree of protection	IP55 conforming to IEC 60529
Range	Canalis
Material	aluminium
Direction change type	direction 2 : edgewise to left - neutral to up, direction 1 : edgewise to right - neutral to up
Product name	KS
Product or component type	elbow
Product compatibility	Canalis KSA busbar trunking 100-250 A
Offer type	advanced
Operating angle	90-90 °
Range of product	Canalis
Network frequency	50/60 Hz
Complementary
Width	54 mm
Mounting position	any position
Electrical connection	lubricated sliding contact
Mounting mode	by screws
Mounting location	on trunking
Length	200-750 mm for side B, 200-750 mm for side A
Standards	IEC 61439-6, IEC 61439-1
Height	146-146 mm
Environment
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	16.5 cm
Package 1 Width	72.6 cm
Package 1 Length	72.6 cm
Package 1 Weight	18.0 kg
