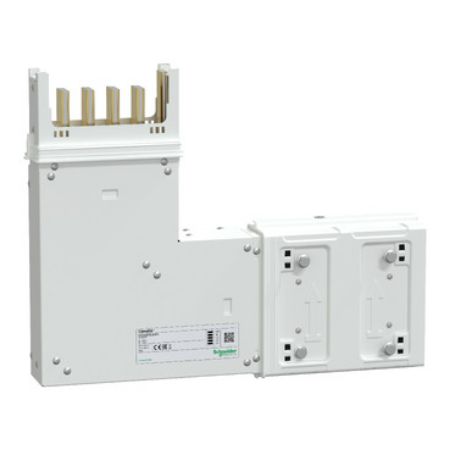

Picture of Elbow, Canalis KSA250, aluminium, 100/160/250A, fixed dimensions (A/B 250mm), to go upward, 3L+N+PE, white RAL9001
SKU:

KSA250DLE401

Elbow, Canalis KSA250, aluminium, 100/160/250A, fixed dimensions (A/B 250mm), to go upward, 3L+N+PE, white RAL9001

$1,401.84 INC GST
Available for Shipping : 10-Nov-2025
Elbow, Canalis KSA250, aluminium, 100/160/250A, fixed dimensions (A/B 250mm), to go upward, 3L+N+PE, white RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...690 V
Device short name KSA
Device application change direction
Colour white (RAL 9001)
[Ie] rated operational current 250 A at 35 °C
Busbar description standard
Dimension type fix
Busbar trunking polarity 3L + N + PE
IP degree of protection IP55 conforming to IEC 60529
Range Canalis
Material aluminium
Direction change type direction 1 : edgewise to upward -
Product name KS
Product or component type elbow
Product compatibility Canalis KSA busbar trunking 100-250 A
Offer type classic
Operating angle 90-90 °
Range of product Canalis
Network frequency 50/60 Hz
Complementary
Width 54 mm
Mounting position any position
Electrical connection lubricated sliding contact
Mounting mode by screws
Mounting location on trunking
Net weight 2.6 kg
Length 250-250 mm for side B, 250-250 mm for side A
Standards IEC 61439-6, IEC 61439-1
Height 146-146 mm
Environment
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 35.0 cm
Package 1 Length 36.5 cm
Package 1 Weight 4.95 kg
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 52.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 38.0 kg
