SKU:

KNT100DL4

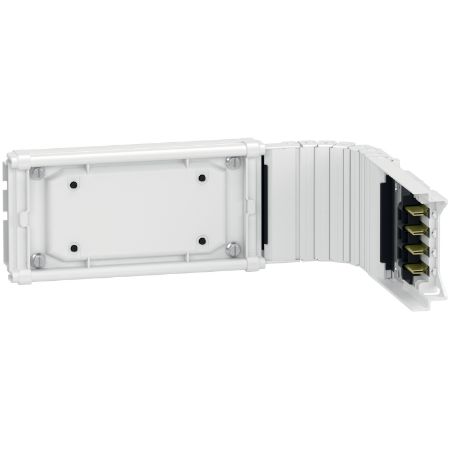

Flexible elbow, Canalis KN, transmission bus, 100A, edgewise, 3L+N+PE, white RAL9001

$1,388.64 INC GST

Qty:

Available for Shipping : 20-Nov-2025

Flexible elbow, Canalis KN, transmission bus, 100A, edgewise, 3L+N+PE, white RAL9001

Manufacturer: Schneider Electric

Environmental Disclosure

Catalog

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
[Ue] rated operational voltage	230...500 V
Device short name	KNT
Device application	low power distribution
Colour	white (RAL 9001)
Busbar description	flexible elbow
[Ie] rated operational current	100 A at 35 °C
Control type	communicating
Range	Canalis
Direction change type	2 dimensions
Number of circuits	1
Product name	KN
Product or component type	flexible element
Range of product	Canalis
Network frequency	50/60 Hz
Complementary
[Ipk] rated peak withstand current	14 kA
Mounting mode	by screws
Thermal stress limit	1980 kA².s
Net weight	1.3 kg
Length	355 mm
Maximum radiated magnetic field	0.106 µT
[Ui] rated insulation voltage	500 V
THDI	33-100 % 63 A, 15-33 % 80 A, 0-15 % 100 A
[Uimp] rated impulse withstand voltage	6 kV
Standards	IEC 61439-6, IEC 61439-1
Operating angle	80-180 °
[Icw] rated short-time withstand current	1.4 kA
Environment
IP degree of protection	IP55 conforming to IEC 60529
Ambient air temperature for operation	0-35 °C without derating
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.5 cm
Package 1 Width	9.2 cm
Package 1 Length	36.5 cm
Package 1 Weight	1.2 kg
