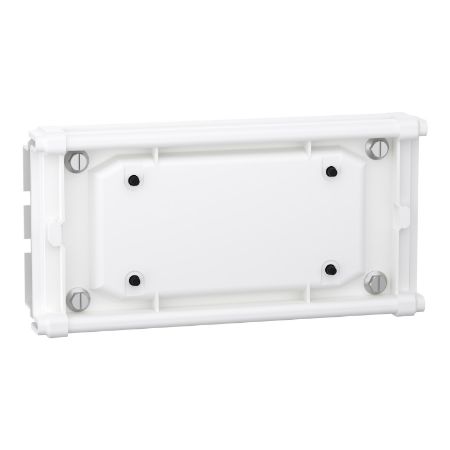

Picture of Jointing unit, Canalis KN, 100A/160A, spare part
SKU:

KNA160ZJ4

Jointing unit, Canalis KN, 100A/160A, spare part

$313.50 INC GST
Available for Shipping : 10-Nov-2025
Jointing unit, Canalis KN, 100A/160A, spare part
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
Canalis electrical and mechanical jointing for KNA. It's applied to low power distribution. The rated operational voltage is from 230VAC to 500VAC. The rated operational current is 100A and 160A. It provides white RAL 9001 surface treatment. Designed with 1 circuit allowing. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Product compatibility KN
Colour white (RAL 9001)
[Ie] rated operational current 160 A, 100 A
Range Canalis
Product name KN
Product or component type electrical and mechanical jointing
Offer type spare part
Range of product Canalis
Complementary
[Ue] rated operational voltage 230...500 V
Device application low power distribution
Depth 38 mm
Width 200 mm
Control type without
Net weight 600 g
Number of circuits 1
Height 100 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
Standards IEC 60439-2, IEC 61439-6
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 10.000 cm
Package 1 Length 20.000 cm
Package 1 Weight 514.900 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.100 cm
Package 2 Width 30.100 cm
Package 2 Length 40.100 cm
Package 2 Weight 7.966 kg
Unit Type of Package 3 3
Number of Units in Package 3 60
Package 3 Height 29.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 38.264 kg
