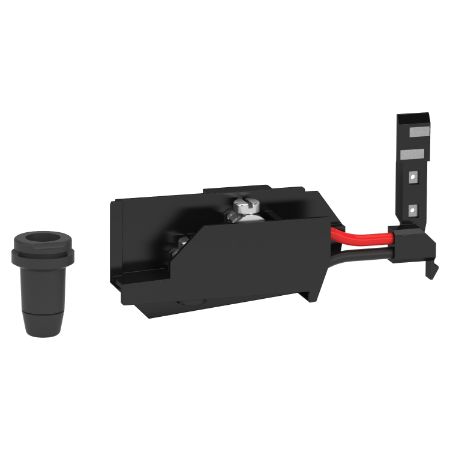

Picture of Contact block accessory, Canalis KB, BUS connection device, with cable gland
SKU:

KBC16ZT1

Contact block accessory, Canalis KB, BUS connection device, with cable gland

$29.17 INC GST
Available for Shipping : 10-Nov-2025
Contact block accessory, Canalis KB, BUS connection device, with cable gland
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a BUS connection device accessory for Canalis KBA and KBB busbar trunkings. Canalis KBA and KBB are designed for lighting and power socket distribution. It is used to tap off the remote control circuit of the trunking to the remote receiver Sold in lots of 10 units. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
Range Canalis
Product or component type contact block
Range compatibility Canalis KBB tap-off unit, Canalis KBA tap-off unit
Range of product Canalis
Complementary
Device application to connect remote control circuit
Quantity per set set of 10
Net weight 10 g
Accessory / separate part category connection accessory
Standards IEC 60439-2, IEC 61439-6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 2.500 cm
Package 1 Length 6.000 cm
Package 1 Weight 9.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.000 cm
Package 2 Width 6.000 cm
Package 2 Length 9.500 cm
Package 2 Weight 116.000 g
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 15.800 cm
Package 3 Width 28.500 cm
Package 3 Length 43.500 cm
Package 3 Weight 3.826 kg
Unit Type of Package 4 4
Number of Units in Package 4 960
Package 4 Height 63.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 16.478 kg
