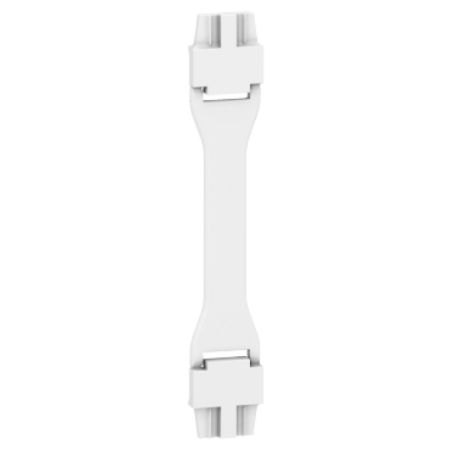

Picture of Interlocking device, Canalis KB, mechanical lock out, white colour identification
SKU:

KBC16ZL20

Interlocking device, Canalis KB, mechanical lock out, white colour identification

$102.04 INC GST
Available for Shipping : 10-Nov-2025
Interlocking device, Canalis KB, mechanical lock out, white colour identification
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This is an outlet/tap-off unit interlocking device (2 parts) for Canalis KBA and KBB busbar trunkings. Canalis KBA and KBB are designed for lighting and power socket distribution. It is used for identification and mechanical interlocking between 1 to 3 different circuits. This accessory is in white colour. Sold in lots of 20 units. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
Product compatibility KBA, KDP, KBB
Range Canalis
Product or component type interlock
Range compatibility Canalis KDP tap-off unit, Canalis KBB tap-off unit, Canalis KBA tap-off unit
Range of product Canalis
Complementary
Device application to lock tap-off unit
Colour white
Quantity per set set of 20
Net weight 2 g
Accessory / separate part category tap-off unit accessory
Standards IEC 60439-2, IEC 61439-6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.500 cm
Package 1 Width 6.000 cm
Package 1 Length 10.000 cm
Package 1 Weight 19.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 1.200 cm
Package 2 Width 7.400 cm
Package 2 Length 11.300 cm
Package 2 Weight 400.000 g
Unit Type of Package 3 3
Number of Units in Package 3 1000
Package 3 Height 20.000 cm
Package 3 Width 19.800 cm
Package 3 Length 30.000 cm
Package 3 Weight 19.000 kg
Unit Type of Package 4 4
Number of Units in Package 4 1000
Package 4 Height 34.500 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 26.000 kg
