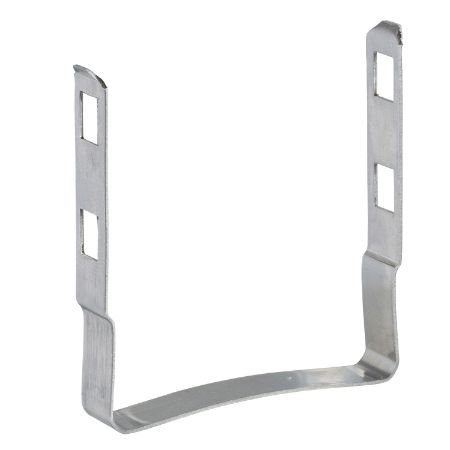

Picture of Rear support bracket, Canalis KB, additional fixing
SKU:

KBC16ZC1

Rear support bracket, Canalis KB, additional fixing

$4.82 INC GST
Available for Shipping : 10-Nov-2025
Rear support bracket, Canalis KB, additional fixing
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a rear support bracket accessory for Canalis KBA and KBB busbar trunkings. Canalis KBA and KBB are designed for lighting and power socket distribution. It is used for securing 16 A single-phase tap-off units to the trunking. Sold in lots of 10 units. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
Range Canalis
Product or component type support bracket
Range compatibility Canalis KBB tap-off unit, Canalis KBA tap-off unit
Range of product Canalis
Complementary
Device application to secure tap-off unit
Quantity per set set of 10
Net weight 20 g
Accessory / separate part category connection accessory
Standards IEC 61439-6, IEC 60439-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.800 cm
Package 1 Width 5.000 cm
Package 1 Length 5.200 cm
Package 1 Weight 5.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 0.800 cm
Package 2 Width 6.000 cm
Package 2 Length 11.000 cm
Package 2 Weight 52.000 g
Unit Type of Package 3 3
Number of Units in Package 3 500
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.820 kg
Unit Type of Package 4 4
Number of Units in Package 4 500
Package 4 Height 29.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 11.050 kg
