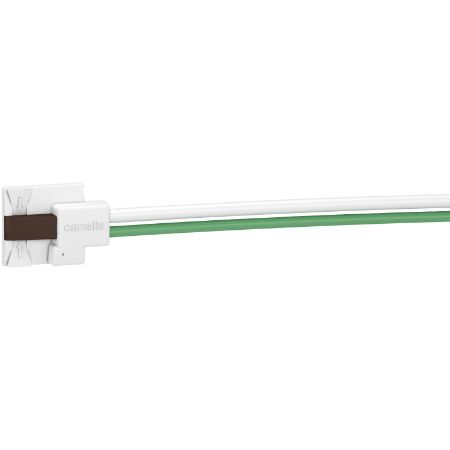

Picture of Connector, Canalis KB, 16A, L3+N+PE, direct connection, pre wired 1m length, compatible DALI/KNX protocol
SKU:

KBC16DCS301T

Connector, Canalis KB, 16A, L3+N+PE, direct connection, pre wired 1m length, compatible DALI/KNX protocol

$42.37 INC GST
Available for Shipping : 10-Nov-2025
Connector, Canalis KB, 16A, L3+N+PE, direct connection, pre wired 1m length, compatible DALI/KNX protocol
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a tap-off unit for direct connection on Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 16A at 35 ℃. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. This tap-off unit is pre-wired with SO5Z1-F 3x1.5mm² cable and 1m long. It is a single phase tap-off unit with a fixed polarity L3+N+PE. An additional twisted pair carries the signal for DALI protocol (D+/D-). The lock is in brown colour. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Sold in lots of 10 units. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...240 V
Device short name KBC
Device application lighting
Tap-off lock colour brown
Tap-off unit polarity L3 + N + PE
[Ie] rated operational current 16 A at 35 °C
Range Canalis
Product or component type tap-off unit
Range compatibility Canalis KBA busbar trunking, Canalis KBB busbar trunking
Tap-off unit connector type with fixed polarity
Range of product Canalis
Network frequency 50/60 Hz
Complementary
Depth 12.5 mm
Width 55 mm
Protection type without protection
Quantity per set set of 10
Net weight 100 g
[Ui] rated insulation voltage 690 V
[Uimp] rated impulse withstand voltage 4 kV
Standards EN/IEC 61439-6, EN/IEC 61439-1
Electrical connection pre-wired with SO5Z1Z1-F - 6 x 1-1 mm² for 1 m long
Height 42 mm
Environment
IP degree of protection IP55 conforming to EN/IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 5.000 cm
Package 1 Length 6.000 cm
Package 1 Weight 110.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 10.000 cm
Package 2 Width 15.000 cm
Package 2 Length 39.000 cm
Package 2 Weight 1.455 kg
Unit Type of Package 3 3
Number of Units in Package 3 960
Package 3 Height 73.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 153.000 kg
