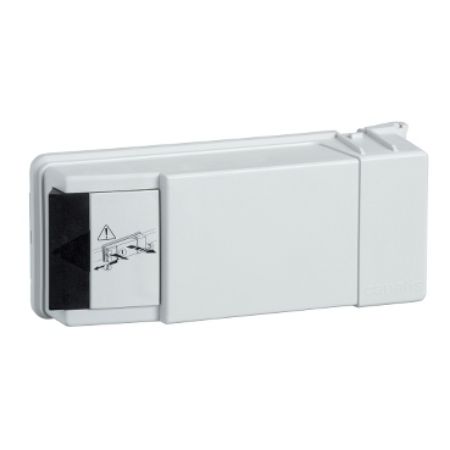

Picture of Canalis, - tap-off unit - 16A - 3L+N+PE - with protection
SKU:

KBC16DCF40

Canalis, - tap-off unit - 16A - 3L+N+PE - with protection

$89.50 INC GST
Available for Shipping : 10-Nov-2025
Canalis, - tap-off unit - 16A - 3L+N+PE - with protection
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a tap-off unit with fuse protection for Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 16A at 35 ℃. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. Protection is ensured by a cylindrical fuse NF 8.5x31.5 (not supplied), with 12A gG type. Polarity is 3L+PE, with mobile studs. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...400 V
Device application lighting
Product compatibility KBB, KBA
Colour cream (RAL 9001)
Protection type fuse
Provided equipment fuse not supplied
Tap-off unit polarity 3L+N+PE
[Ie] rated operational current 16 A at 35 °C
Busbar trunking polarity L2 + L1 + L3 + N + PE
Range Canalis
Product or component type tap-off unit
Range compatibility Canalis KBB busbar trunking, Canalis KBA busbar trunking
Fuse type cylindrical: 8.5 x 31.5 mm - gG conforming to NF
Tap-off unit connector type with fixed polarity
Range of product Canalis
Network frequency 50/60 Hz
Complementary
Depth 38 mm
Width 205 mm
Net weight 90 g
[Ui] rated insulation voltage 690 V
Standards EN/IEC 61439-6, EN/IEC 60439-2
Height 68 mm
Environment
IP degree of protection IP55 conforming to EN/IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 8.000 cm
Package 1 Length 17.000 cm
Package 1 Weight 234.000 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 15.800 cm
Package 2 Width 28.500 cm
Package 2 Length 43.500 cm
Package 2 Weight 4.696 kg
Unit Type of Package 3 3
Number of Units in Package 3 144
Package 3 Height 73.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 42.568 kg
