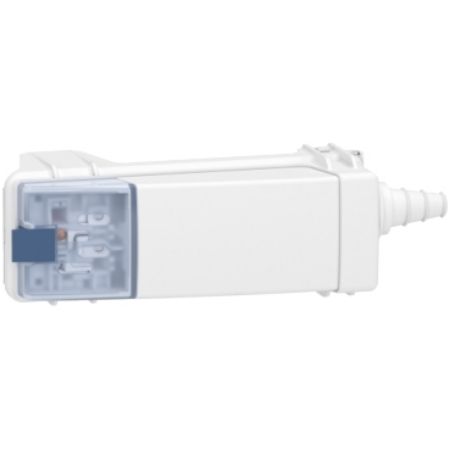

Picture of Connector, Canalis KB, 16A, fixed polarity L2+N2, with fuse NF 8.5x31.5mm, not wired
SKU:

KBC16DCF226

Connector, Canalis KB, 16A, fixed polarity L2+N2, with fuse NF 8.5x31.5mm, not wired

$44.75 INC GST
Available for Shipping : 24-Jul-2025
Connector, Canalis KB, 16A, fixed polarity L2+N2, with fuse NF 8.5x31.5mm, not wired
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a tap-off unit with fuse protection for Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 16A at 35 ℃. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. Protection is ensured by a cylindrical fuse NF 8.5x31.5 (not supplied), with 16A gG type. Polarity is pre-selected L3+N3. The lock is in blue colour. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Sold in lots of 10 units. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...400 V
Device application lighting
Product compatibility KBA, KBB
Tap-off lock colour blue
Colour grey (RAL 7035)
Protection type fuse
Provided equipment fuse not supplied
Tap-off unit polarity L2 + N + PE
[Ie] rated operational current 16 A at 35 °C
Busbar trunking polarity L2 + N2 + L3 + N3 + PE
Range Canalis
Product or component type tap-off unit
Range compatibility Canalis KBB busbar trunking, Canalis KBA busbar trunking
Fuse type cylindrical: 8.5 x 31.5 mm - gG conforming to NF
Tap-off unit connector type with fixed polarity
Range of product Canalis
Network frequency 50/60 Hz
Complementary
Depth 33 mm
Width 168 mm
Quantity per set set of 10
Net weight 90 g
[Ui] rated insulation voltage 690 V
Standards EN/IEC 61439-6, EN/IEC 60439-2
Height 53 mm
Environment
IP degree of protection IP55 conforming to EN/IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 6.5 cm
Package 1 Length 14.0 cm
Package 1 Weight 110.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 12.0 cm
Package 2 Width 16.0 cm
Package 2 Length 25.0 cm
Package 2 Weight 1.2 kg
Unit Type of Package 3 3
Number of Units in Package 3 220
Package 3 Height 39.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 33.4 kg
