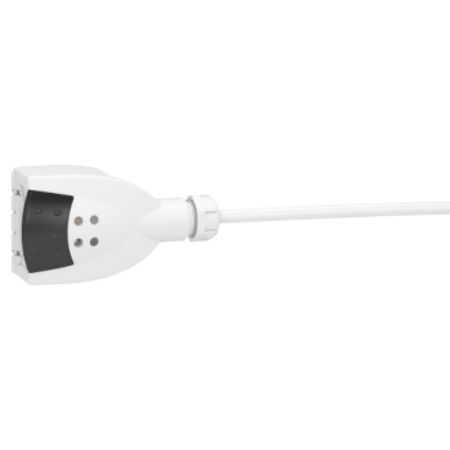

Picture of Connector, Canalis KB, 10A, polarity L+N+PE, phase selection, direct connection, pre wired 1m length, compatible DALI
SKU:

KBC10DCC211

Connector, Canalis KB, 10A, polarity L+N+PE, phase selection, direct connection, pre wired 1m length, compatible DALI

$32.60 INC GST
Available for Shipping : 10-Nov-2025
Connector, Canalis KB, 10A, polarity L+N+PE, phase selection, direct connection, pre wired 1m length, compatible DALI
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a tap-off unit for direct connection on Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 10A at 35 ℃. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. This tap-off unit is pre-wired with SO5Z1-F 3x1.5mm² cable and 1m long. The two contact studs are movable and can be used to set up both L + N + PE and 2L + PE distribution. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Sold in lots of 10 units. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...240 V
Device short name KBC
Device application lighting
Tap-off unit polarity L2 + L3 + PE, L1 + L3 + PE, L1 + L2 + PE, L3 + N + PE, L2 + N + PE, L1 + N + PE
[Ie] rated operational current 10 A at 35 °C
Range Canalis
Product or component type tap-off unit
Range compatibility Canalis KBB busbar trunking, Canalis KBA busbar trunking
Tap-off unit connector type with phase selection
Range of product Canalis
Network frequency 50/60 Hz
Complementary
Depth 62 mm
Width 1 m
Colour cream (RAL 9001)
Protection type without protection
Quantity per set set of 10
Net weight 165 g
[Ui] rated insulation voltage 690 V
[Uimp] rated impulse withstand voltage 4 kV
Standards EN/IEC 61439-6, EN/IEC 61439-1
Electrical connection pre-wired with SO5Z1Z1-F - 3 x 1.5-1.5 mm² for 1 m long
Height 60 mm
Environment
IP degree of protection IP55 conforming to EN/IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.200 cm
Package 1 Width 6.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 150.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 14.200 cm
Package 2 Width 20.500 cm
Package 2 Length 29.500 cm
Package 2 Weight 1.667 kg
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 84.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 75.180 kg
