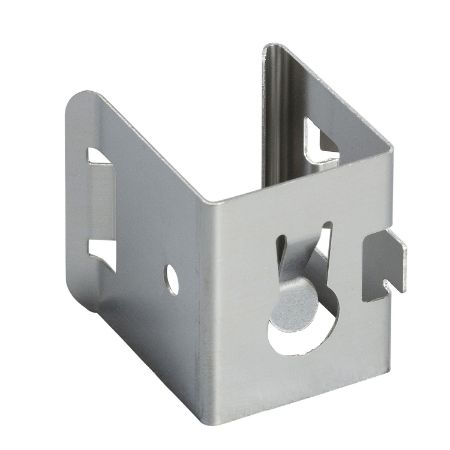

Picture of Cable duct support, Canalis KB, 25/40A, spring fixing bracket mounting
SKU:

KBB40ZFG1

Cable duct support, Canalis KB, 25/40A, spring fixing bracket mounting

$5.62 INC GST
Available for Shipping : 10-Nov-2025
Cable duct support, Canalis KB, 25/40A, spring fixing bracket mounting
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a cable duct support for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. Used for Canalis KBB busbar trunking with 40A rated operational current at 35°C. It has to be mounted on a spring fixing bracket. The maximum recommended distance between fixing is 2m. Sold in lots of 10 units.

Products specifications

Attribute name Attribute value
Main
Product compatibility KBA, KBB
Quantity per set set of 10
Range Canalis
Product or component type support
Range of product Canalis
Complementary
Width 26.5 mm
Mounting mode by clips
Mounting location on trunking
Net weight 0.1 kg
Accessory / separate part category fixing accessory
Mounting support busbar
Height 33 mm
Environment
Standards IEC 60439-2, IEC 61439-6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 2.500 cm
Package 1 Length 3.500 cm
Package 1 Weight 11.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 4.500 cm
Package 2 Width 9.000 cm
Package 2 Length 11.000 cm
Package 2 Weight 113.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 13.500 cm
Package 3 Width 20.500 cm
Package 3 Length 30.000 cm
Package 3 Weight 1.261 kg
Unit Type of Package 4 4
Number of Units in Package 4 3200
Package 4 Height 84.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 45.352 kg
