SKU:

KBB40AF

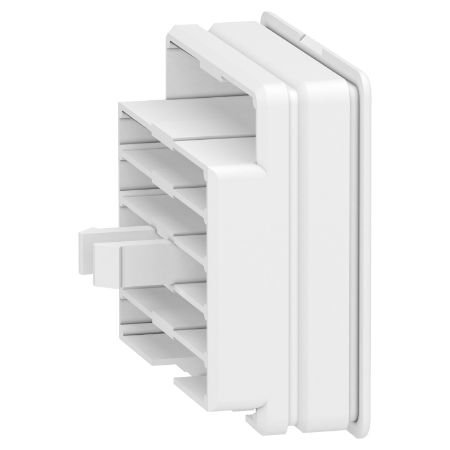

End cover, Canalis KB, feed unit cover, spare part

$43.82 INC GST
Available for Shipping : 20-Nov-2025
End cover, Canalis KB, feed unit cover, spare part
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Manufacturer: Schneider Electric
This is a end cover for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. This element is clipped on the end of the line which is not covered by a feed unit. It is a spare part. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
Product compatibility KBB
Colour white (RAL 9003)
[Ie] rated operational current 40 A
Range Canalis
Product or component type end cover
Offer type spare part
Range of product Canalis
Complementary
Depth 30 mm
Width 46 mm
Mounting mode by clips
Mounting location side of trunking
Mounting support busbar
Height 46 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
Standards IEC 60439-2, IEC 61439-6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3 cm
Package 1 Width 5 cm
Package 1 Length 5 cm
Package 1 Weight 18 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7 cm
Package 2 Width 10 cm
Package 2 Length 17 cm
Package 2 Weight 680 g
Unit Type of Package 3 3
Number of Units in Package 3 250
Package 3 Height 20 cm
Package 3 Width 31 cm
Package 3 Length 40 cm
Package 3 Weight 4.85 kg
