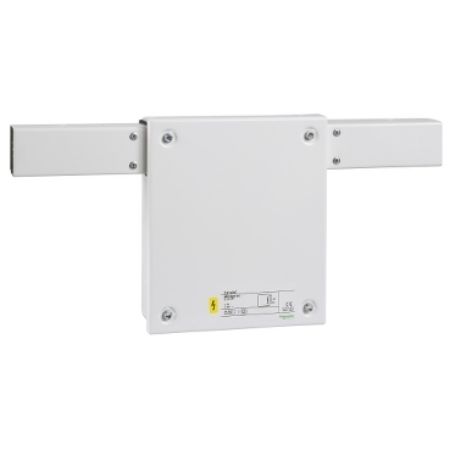

Picture of End feed unit, Canalis KBA, 25/40A, central mounting, 1 circuit, compatible DALI and KNX, white RAL9003
SKU:

KBA40ABT4TW

End feed unit, Canalis KBA, 25/40A, central mounting, 1 circuit, compatible DALI and KNX, white RAL9003

$968.88 INC GST
Available for Shipping : 20-Nov-2025
End feed unit, Canalis KBA, 25/40A, central mounting, 1 circuit, compatible DALI and KNX, white RAL9003
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a feed unit for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This feed unit is a central mounting element, it is clipped on the lines on both sides. It receives power cables with 10 mm² cross section and a maximum diameter of 19 mm (PG 21). It embeds 1 electrical circuit with 3L+N+PE polarity. This feed unit is delivered with an optional remote control circuit made of 2 conductors, and is able to transport and distribute DALI protocol for lighting management. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 562mm, and the section is 78.5mm x 75.5mm. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...400 V
Device short name KBA
Colour white (RAL 9003)
Protection type without protection
Communication port protocol KNX, DALI
[Ie] rated operational current 25 A, 40 A
Busbar trunking polarity L + N + PE, 3L + N + PE
Control type communicating
Range Canalis
Material aluminium
Number of circuits 1
Product or component type feed unit
Product compatibility Canalis KBA busbar trunking 25-40 A
Offer type control system
Range of product Canalis
Complementary
Depth 75.5 mm
Width 562 mm
Provided equipment end cover
Mounting mode by clips
Mounting location central
Net weight 500 g
Mounting support busbar
Connections - terminals terminal block - Pg 21 - screw clamp connector for 6-10 mm²
Standards IEC 61439-6
Height 75.5 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 21.5 cm
Package 1 Length 61.0 cm
Package 1 Weight 2.708 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 40.5 cm
Package 2 Width 60.0 cm
Package 2 Length 80.0 cm
Package 2 Weight 29.0 kg
