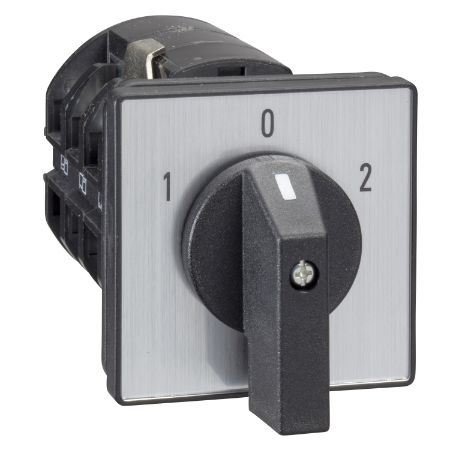

Picture of Cam reversing switch, Harmony K, front mounting, plastic, 3 poles, position 0, 60°, 63A, 64x64mm front plate marqued 1/0/2
SKU:

K63E003WP

Cam reversing switch, Harmony K, front mounting, plastic, 3 poles, position 0, 60°, 63A, 64x64mm front plate marqued 1/0/2

Old price: $684.20 INC GST
$533.68 INC GST
Available for Shipping : 12-Aug-2025
Cam reversing switch, Harmony K, front mounting, plastic, 3 poles, position 0, 60°, 63A, 64x64mm front plate marqued 1/0/2
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Off position with Off position
Return without
Product mounting front mounting
Cam switch head type with front plate 64 x 64 mm
Switching positions right: 0° - 60°, left: 0° - 300°
Type of operator black handle
IP degree of protection IP40 conforming to IEC 60529
Range of product Harmony K
Rotary handle padlocking without
Poles description 3P
Component name K63
Cam switch function reversing switch
[Ith] conventional free air thermal current 63 A
Product or component type complete cam switch
Presentation of legend with metallic legend, 1 - 0 - 2 black marking
Fixing mode 4 holes
Complementary
Compatibility code K63E
Mechanical durability 300000 cycles
Contact operation slow-break
Tightening torque 2.5 N.m
Positive opening with
Electrical connection captive screw clamp terminals solid, clamping capacity: 2 x 16 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 10 mm²
CAD overall height 64 mm
CAD overall depth 132 mm
CAD overall width 64 mm
Switching capacity in mA 63000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms), 63000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms), 63000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms), 63000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms), 55000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms), 55000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms), 55000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms), 30000 mA DC at 60 V 1 contact(s) for resistive load (T = 1 ms), 30000 mA DC at 180 V 3 contact(s) for resistive load (T = 1 ms), 30000 mA DC at 120 V 2 contact(s) for resistive load (T = 1 ms), 20000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms), 20000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms), 20000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms)
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 10000 A
Switching angle 60 °
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 6 kV conforming to EN 947-1
Net weight 0.54 kg
Short-circuit protection 80 A cartridge fuse, type gG
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-55 °C
Electrical shock protection class class II conforming to NF C 20-030, class II conforming to IEC 60536
Standards IEC 60947-3
Product certifications cULus 240 V 10 hp 3 phases, cULus 240 V 7.5 hp 1 phase, cULus 480 V 25 hp 3 phases, cULus 120 V 3 hp 1 phase
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.700 cm
Package 1 Width 7.200 cm
Package 1 Length 7.200 cm
Package 1 Weight 472.000 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 12.352 kg
