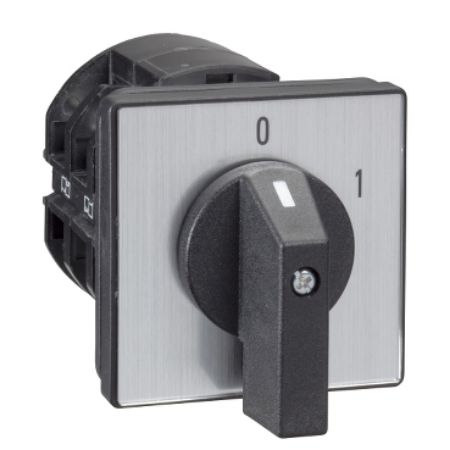

Picture of Cam switch, Harmony K, front mounting, plastic, 3 poles, 60°, 63A, 64x64mm, marked 0/1
SKU:

K63C003AP

Cam switch, Harmony K, front mounting, plastic, 3 poles, 60°, 63A, 64x64mm, marked 0/1

Old price: $551.10 INC GST
$429.86 INC GST
Available for Shipping : 12-Aug-2025
Cam switch, Harmony K, front mounting, plastic, 3 poles, 60°, 63A, 64x64mm, marked 0/1
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Off position with Off position
Return without
Rotary handle padlocking without
Poles description 3P
Product mounting front mounting
Cam switch head type with front plate 64 x 64 mm
Switching positions right: 0° - 60°
Type of operator black handle
Component name K63
Cam switch function switch
[Ith] conventional free air thermal current 63 A
Product or component type complete cam switch
IP degree of protection IP40 conforming to IEC 60529
Presentation of legend with metallic legend, 0 - 1 black marking
Fixing mode 4 holes
Range of product Harmony K
Complementary
[Ie] rated operational current AC 63 A AC-21A conforming to IEC 60947-3
Rated operational power in W 6000 W AC-3, 220/240 V 1 phase conforming to IEC 60947-3, 40000 W AC-23A, 660/690 V 3 phases conforming to IEC 60947-3, 4000 W AC-23A, 110 V 1 phase conforming to IEC 60947-3, 30000 W AC-23A, 380/440 V 3 phases conforming to IEC 60947-3, 3000 W AC-3, 110 V 1 phase conforming to IEC 60947-3, 18500 W AC-3, 660/690 V 3 phases conforming to IEC 60947-3, 18500 W AC-3, 380/440 V 3 phases conforming to IEC 60947-3, 18500 W AC-23A, 380/440 V 1 phase conforming to IEC 60947-3, 15000 W AC-23A, 220/240 V 3 phases conforming to IEC 60947-3, 11000 W AC-3, 380/440 V 1 phase conforming to IEC 60947-3, 11000 W AC-3, 220/240 V 3 phases conforming to IEC 60947-3, 10000 W AC-23A, 220/240 V 1 phase conforming to IEC 60947-3
CAD overall depth 111 mm
CAD overall width 64 mm
Switching capacity in mA 63000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms), 63000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms), 63000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms), 63000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms), 63000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms), 55000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms), 55000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms), 55000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms), 30000 mA DC at 60 V 1 contact(s) for resistive load (T = 1 ms), 30000 mA DC at 180 V 3 contact(s) for resistive load (T = 1 ms), 30000 mA DC at 120 V 2 contact(s) for resistive load (T = 1 ms), 20000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms), 20000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms), 20000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms)
Compatibility code K63C
Mechanical durability 300000 cycles
Contact operation slow-break
Tightening torque 2.5 N.m
Positive opening with
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 10000 A
Electrical connection captive screw clamp terminals solid, clamping capacity: 2 x 16 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 10 mm²
Switching angle 60 °
CAD overall height 64 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 6 kV conforming to EN 947-1
Net weight 0.345 kg
Short-circuit protection 80 A cartridge fuse, type gG
Environment
Protective treatment TC
Electrical shock protection class class II conforming to NF C 20-030, class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Standards IEC 60947-3
Product certifications cULus 240 V 10 hp 3 phases, cULus 240 V 7.5 hp 1 phase, cULus 480 V 25 hp 3 phases, cULus 120 V 3 hp 1 phase
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.5 cm
Package 1 Width 7.2 cm
Package 1 Length 7.2 cm
Package 1 Weight 311.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 10.487 kg
